Plastic Board Crusher Machine Application:
EPS PVC Plastic Board Crusher Machine is mainly used for crushing wasted plastics like plastic PVC sheet, PVC board, hollow containers, pipes, profile, plastic films, sheet and so on.

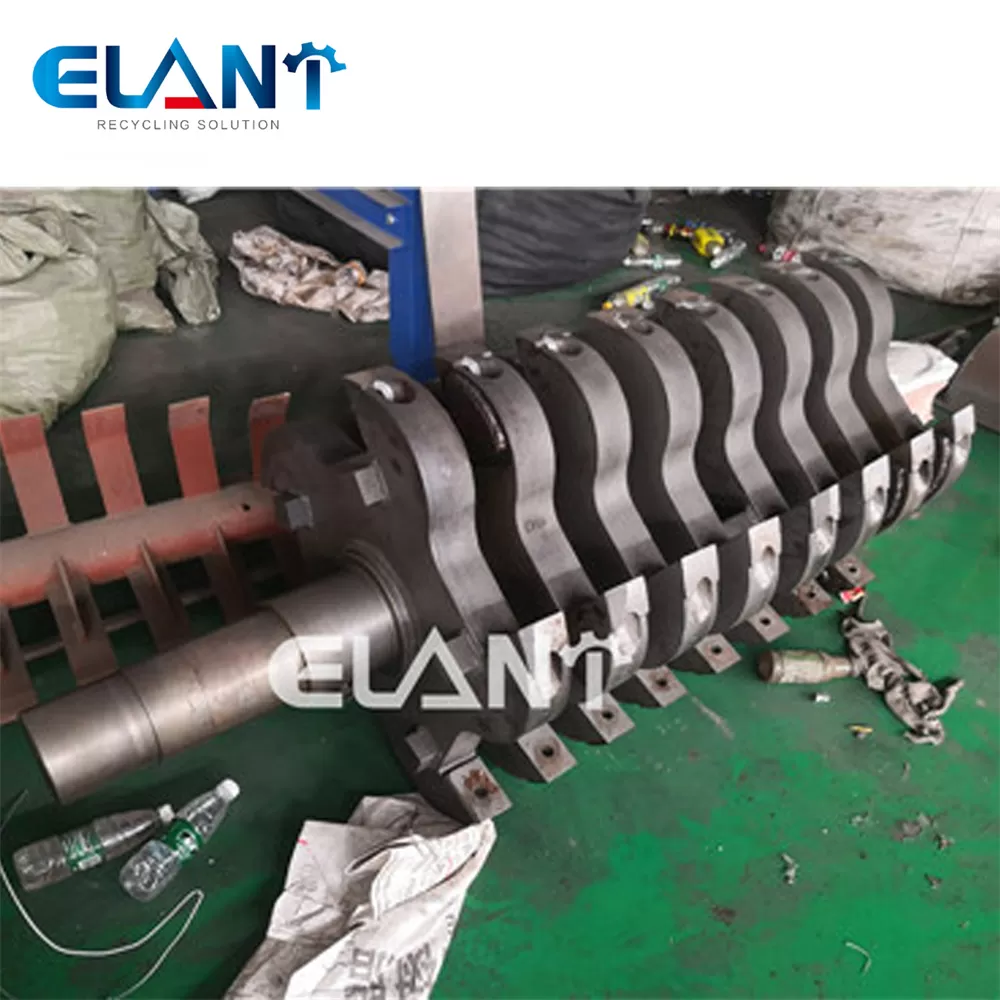

According to the characteristics of different material forms, this type of Plastic Board Crusher Machine is mainly used for crushing wasted plastics like plastic PVC sheet, PVC board, hollow containers, pipes, profile, plastic films, sheet and so on. is equipped with kinds of rotors, which can be matched and selected according to the crushing needs. The diameter of the rotor is from 500-800mm, the minimum rotor width is 700mm, and the maximum is 1600mm. A targeted rotor structure can be designed to achieve the best crushing effect.
The special welding process is used to integrally weld the steel structure, which can meet the demanding requirements and materials which are not easily broken. It also with large rotor bearings, tool holders, and rotors. Standard V-shaped cutting technology is beneficial to improve cutting recycling efficiency and reduce dust content in recycled materials. The deflection wedge, a detachable attachment with a third knife, meets different crushing needs through simple disassembly. Other standard equipment includes an easy removing anti-wear plate in the crushing chamber and an external bearing to reduce the risk of contaminants entering.
Technical Parameter of Plastic Board Crusher:
| Model | Motor power
(kw) |
Qty. of rotary blades
(PCS) |
Qty. of fixed blades
(PCS) |
Rotational diameter
(mm) |
Overall dimension
(mm) |
| GE750-1200 | 90 | 6 | 4 | Ø750 | 3150*2200*3250 |
It is designed to meet the production requirements of high-volume crushing PVC hollow sheet and one-time crushing.
According to the characteristics of the material, the appropriate shearing angle and shearing speed are designed, and the wear-resistant design is adopted to ensure the continuous operation of the system for a long time, so as to achieve the ideal material crushing effect.
– What kind of material do you want to shred? What’s their maximum dimension and thickness?
– What capacity do you need on shredder machine?
– What’s the final flakes size do you need?
– Do you need complete set of shredder-crushing system?
