Overview of PP/PE/LDPE Plastic Film Pelletizing Machine

Corresponding Content:
- Equipment Nature: A professional industrial equipment specially designed for processing waste PP/PE/LDPE plastic films (such as packaging films, agricultural films, film scraps) into uniform and high-quality plastic pellets through processes of crushing, melting, extruding, shaping and cutting.
- Applicable Materials: Waste PP plastic film, waste PE plastic film, waste LDPE plastic film, mixed PP/PE/LDPE film scraps, film printing leftovers, agricultural film residues, etc.
- Core Processes: Integration of the entire process from film crushing, feeding, melting & extruding, filtering & impurity removing, shaping, cooling to pelletizing.
- Core Value: Realizes the recycling of PP/PE/LDPE plastic film waste, solves the problem of film waste pollution; the produced pellets have stable performance and can be directly reused for producing plastic films, injection molding products, hollow products, etc., helping enterprises reduce raw material procurement costs by 40-60%.
- Applicable Enterprises: Plastic film recycling plants, plastic product manufacturers, agricultural film recycling stations, packaging material processing enterprises, waste treatment centers.

Key Types of PP/PE/LDPE Plastic Film Pelletizing Machine

Core Product Portfolio & Application Scenarios

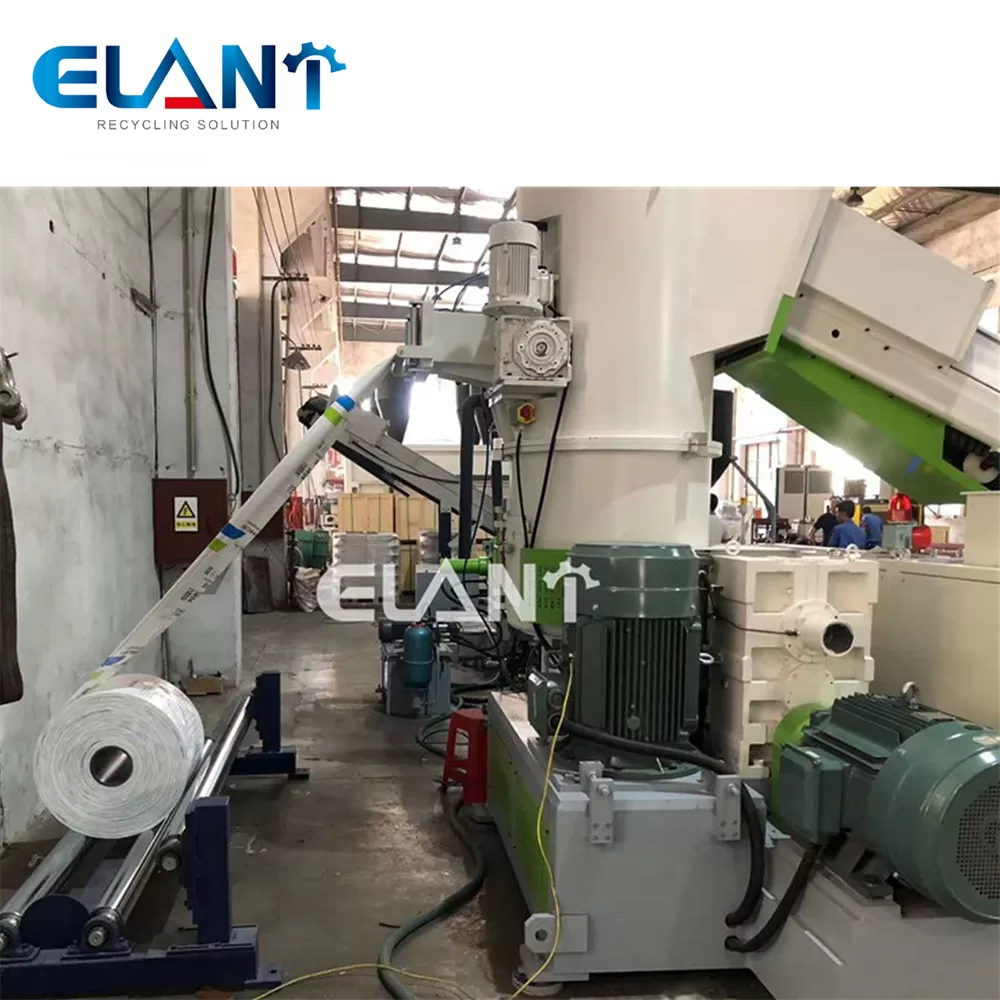

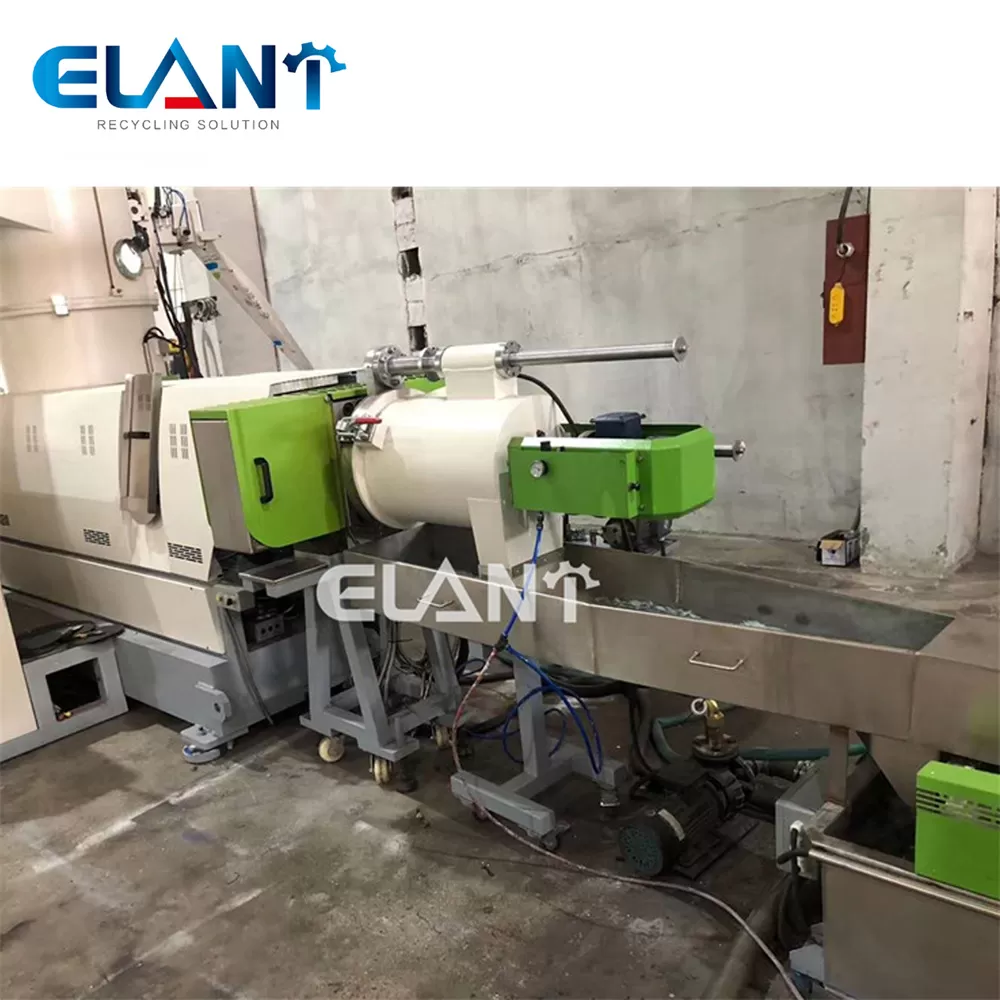

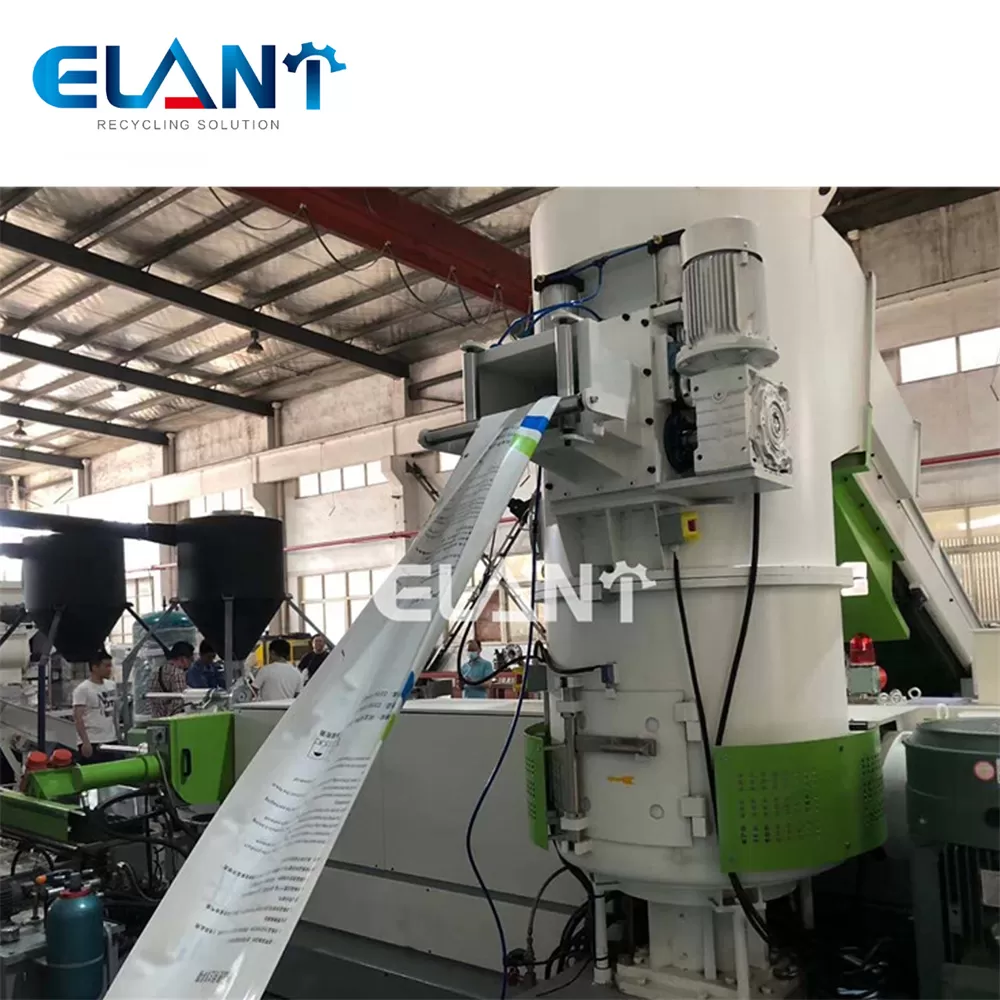

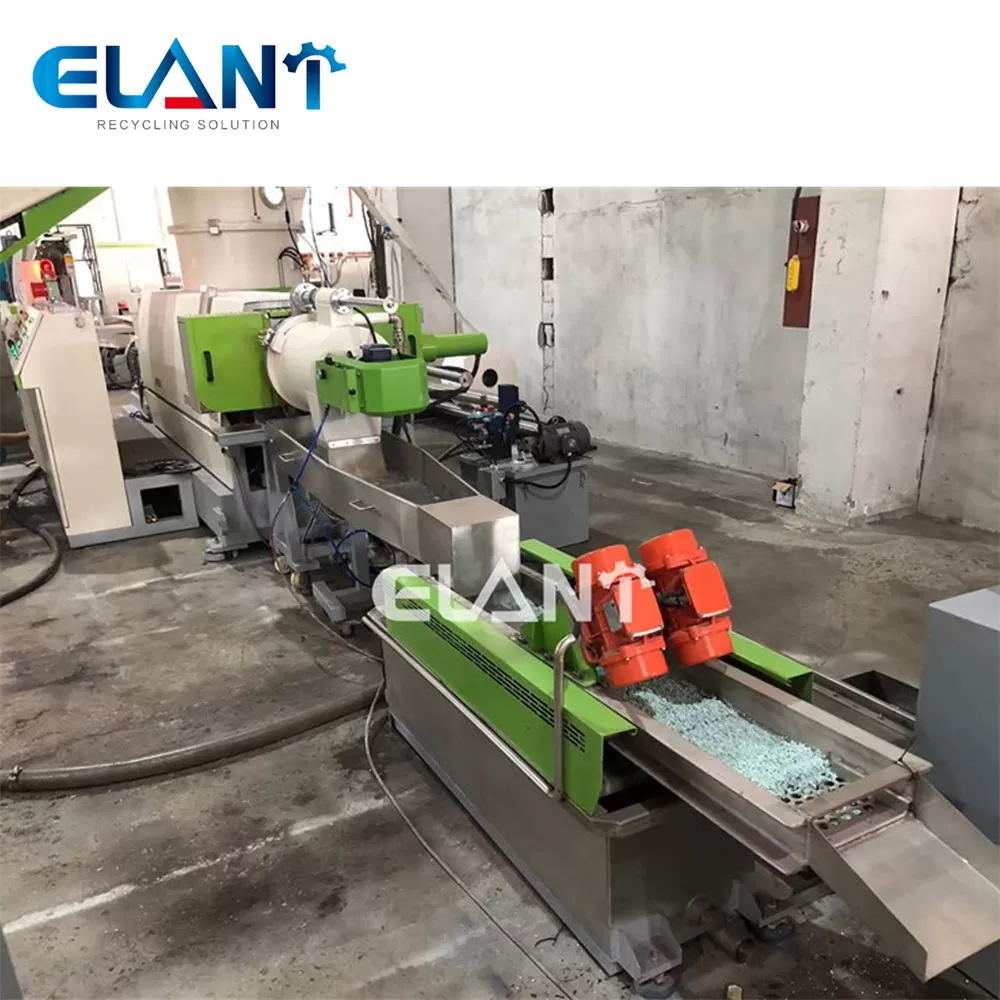

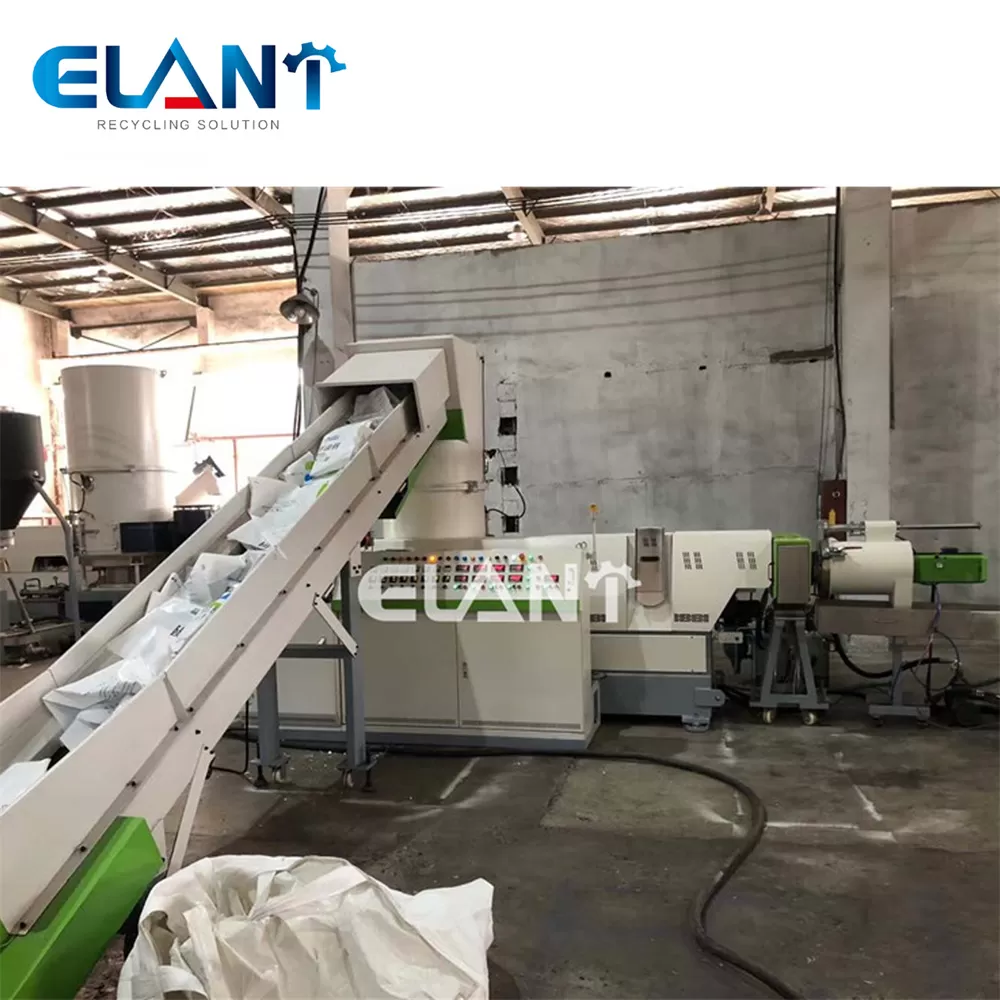

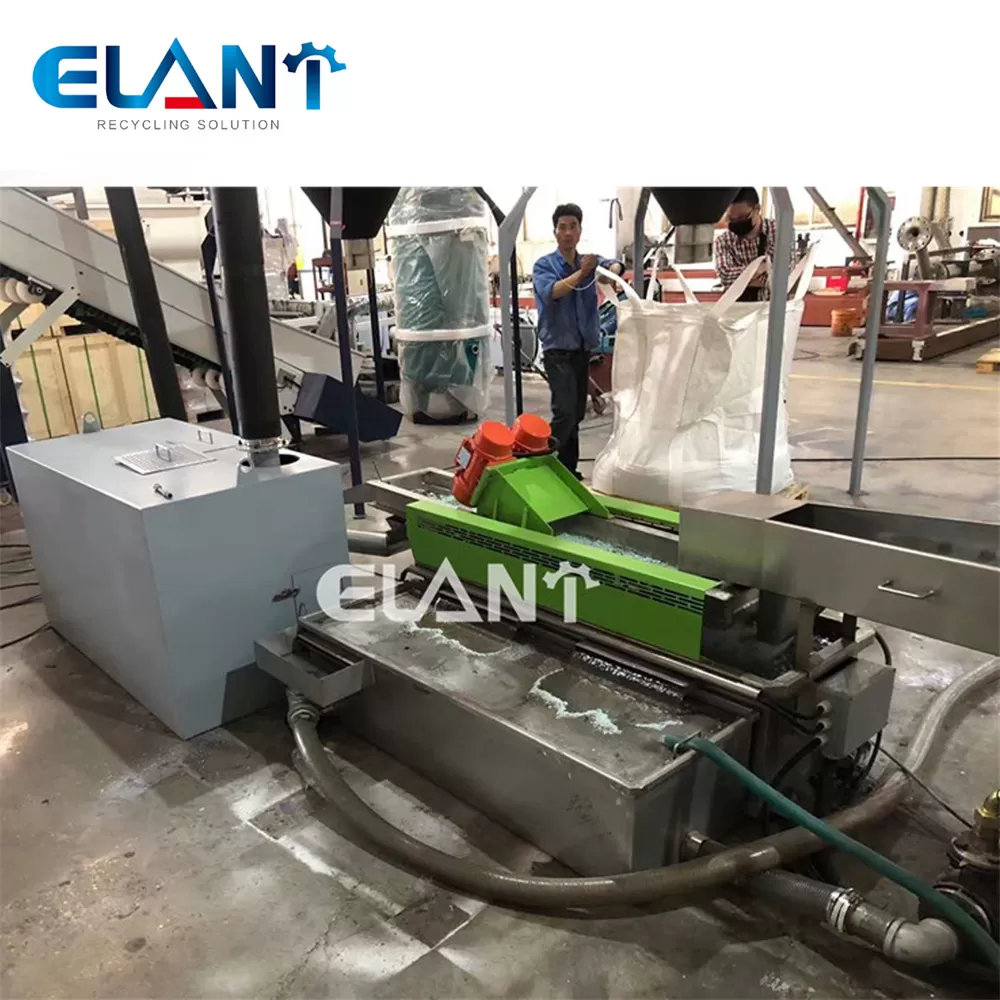

BOPP Recycling Pelletizer Machine

The BOPP Recycling Pelletizer Machine is designed to process post-industrial BOPP film waste—such as packaging scraps, label stock, and laminated films—into high-quality recycled PP pellets. The system includes feeding, extrusion, melt filtration, and pelletizing (strand or underwater cut), ensuring consistent output with low contamination. Optimized for clean, dry BOPP feedstock, it supports circular production in film, fiber, and injection molding industries, offering stable performance, low energy consumption, and compliance with recycling standards.

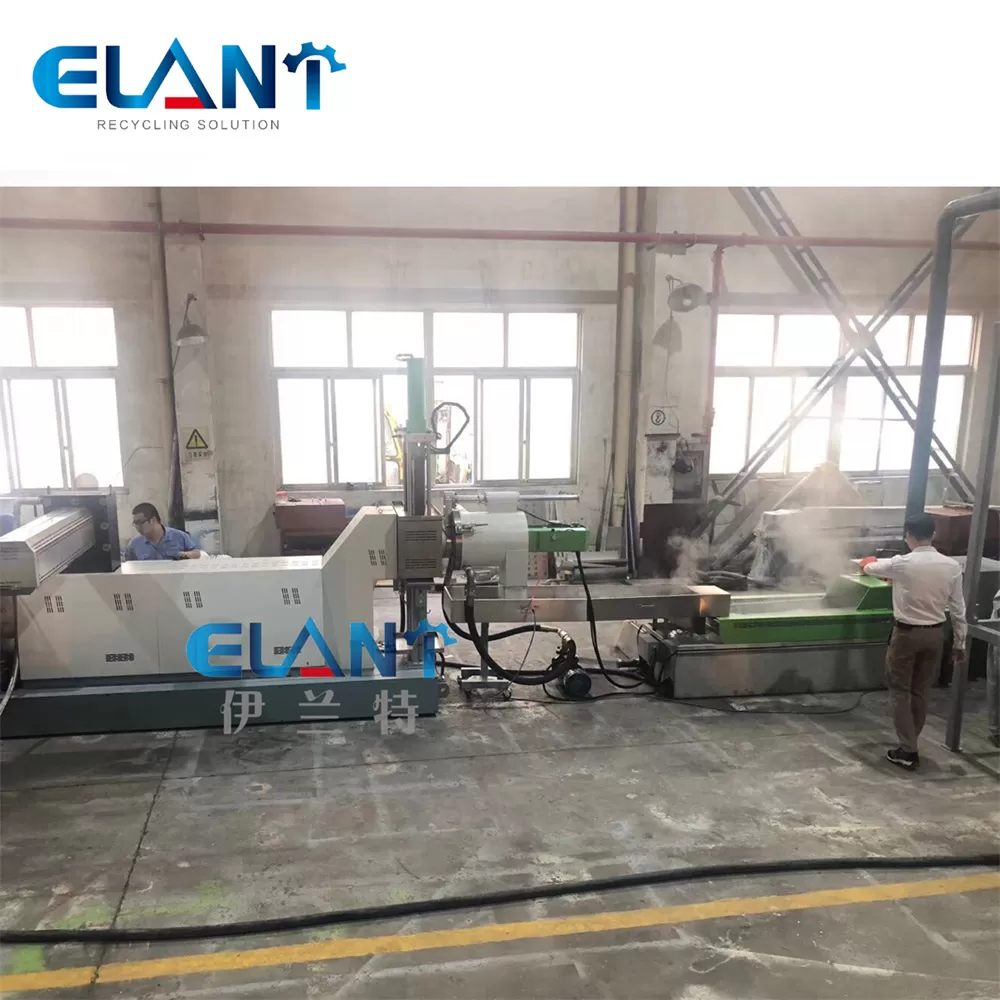

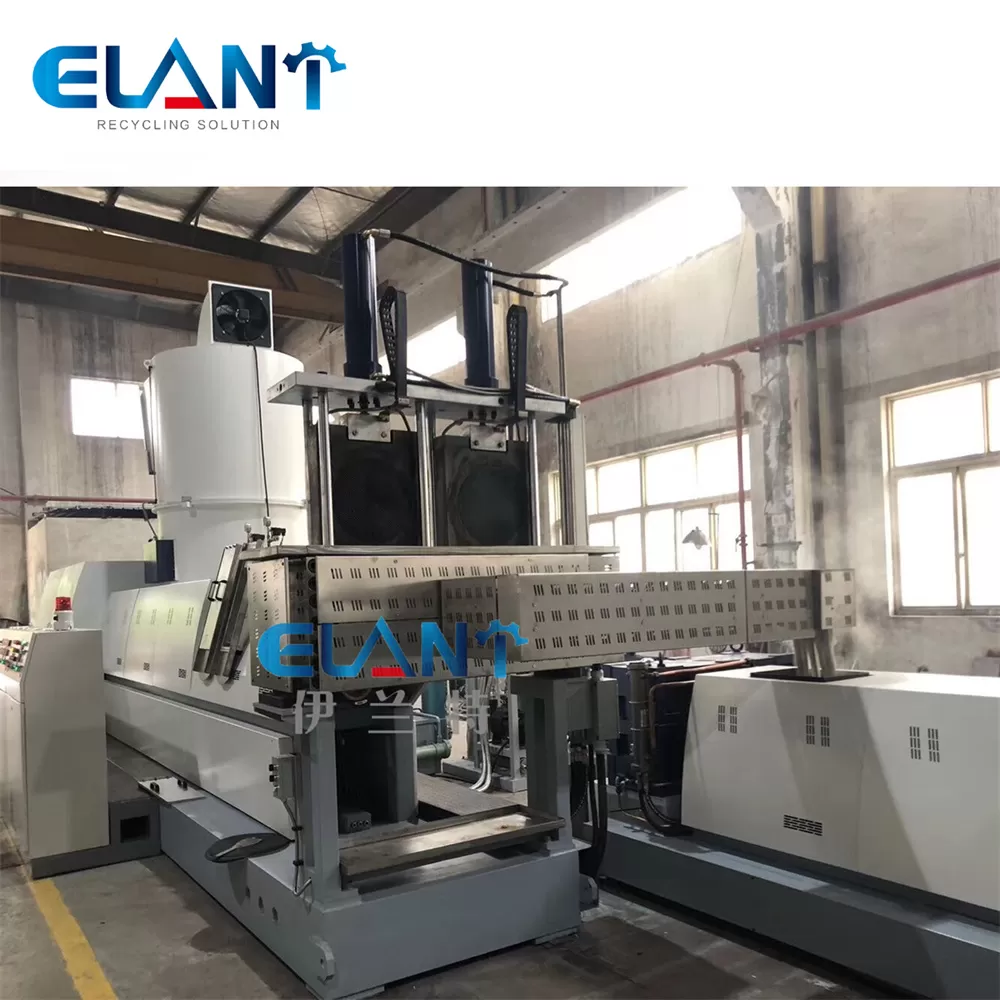

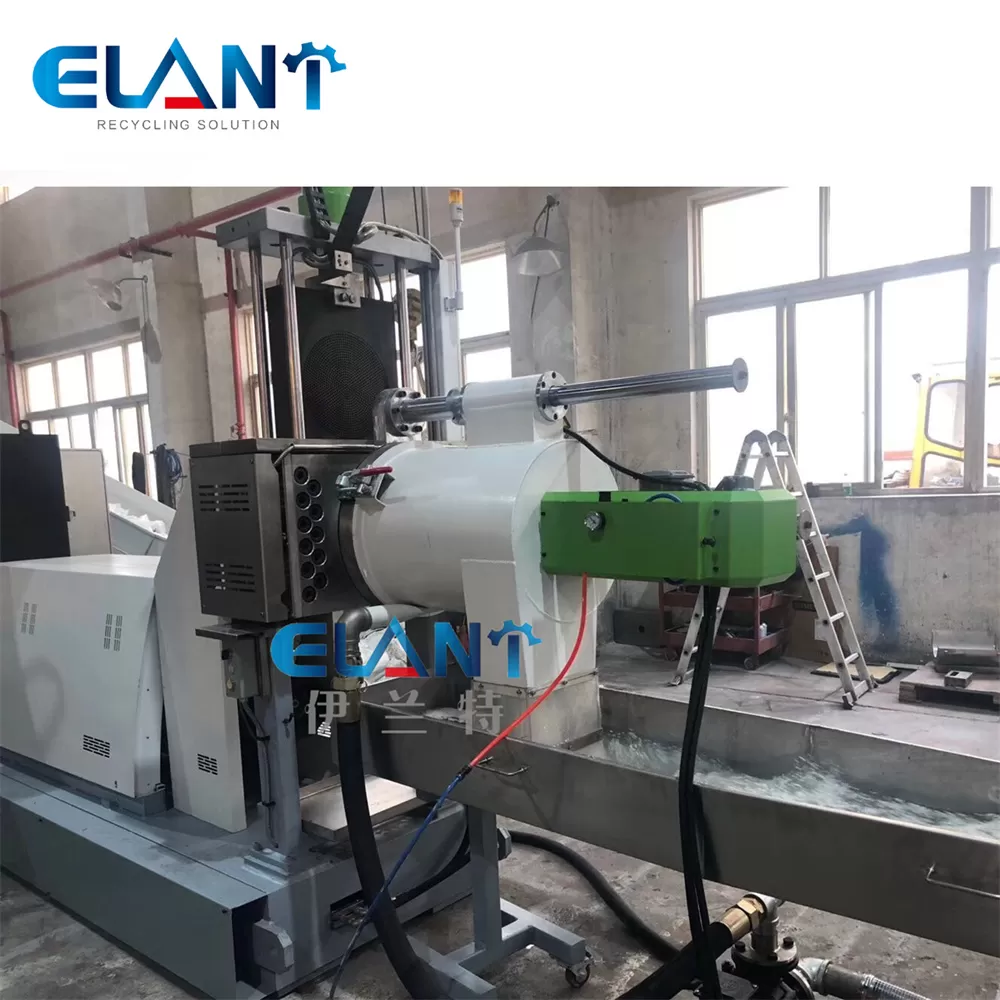

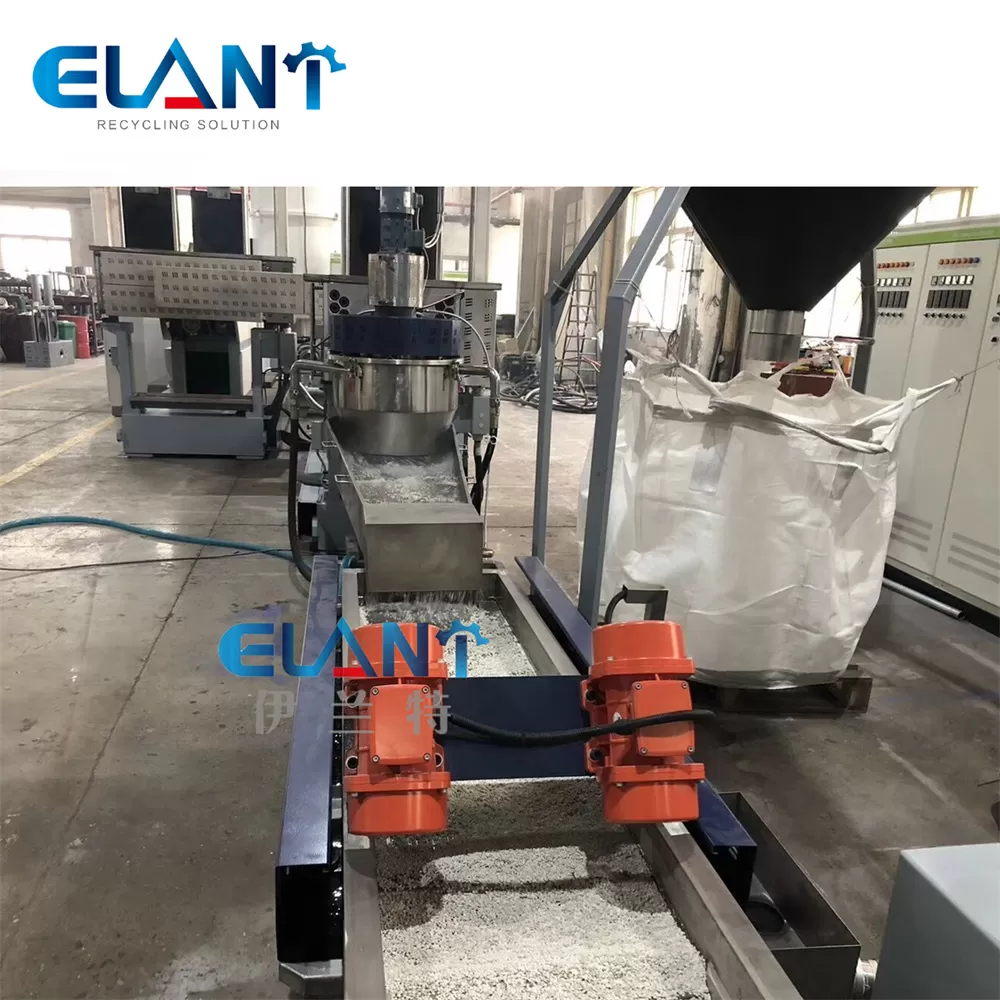

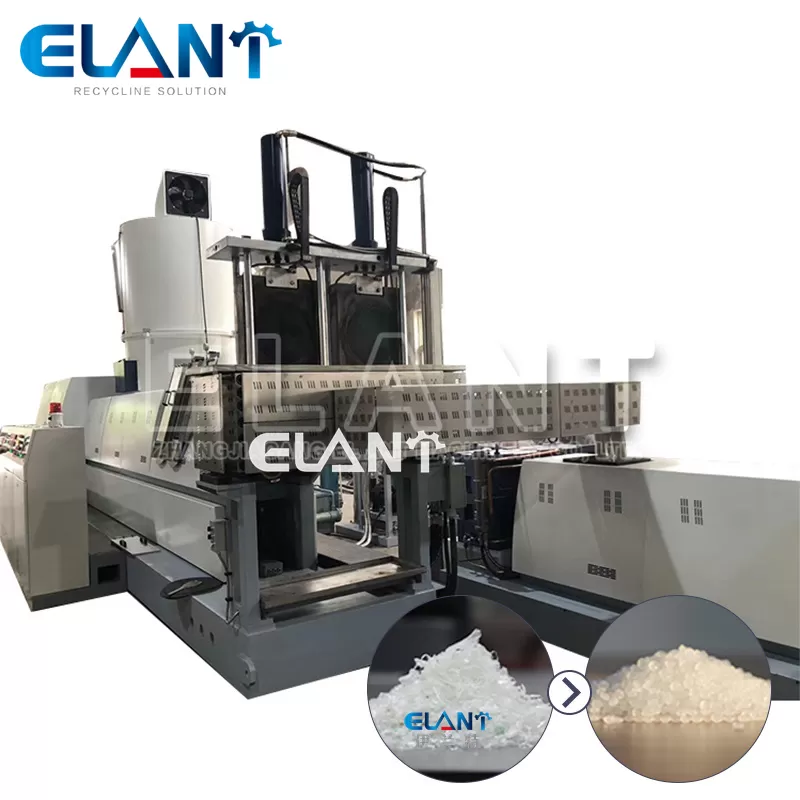

ML180 Cutter Compactor PP PE LDPE Plastic granulator

The ML180 Cutter Compactor is a compact, high-efficiency granulator designed for processing PP, PE, and LDPE plastic films—such as shopping bags, shrink wrap, and packaging scraps. It combines cutting and densification in one step, turning lightweight, bulky film into dense, free-flowing flakes ideal for direct feeding into extruders or washing lines. Featuring robust blades, low noise operation, and a capacity of 100–150 kg/h, the ML180 offers reliable pre-processing for small to medium-scale recycling operations.

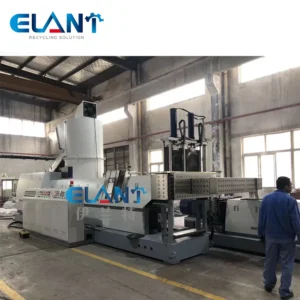

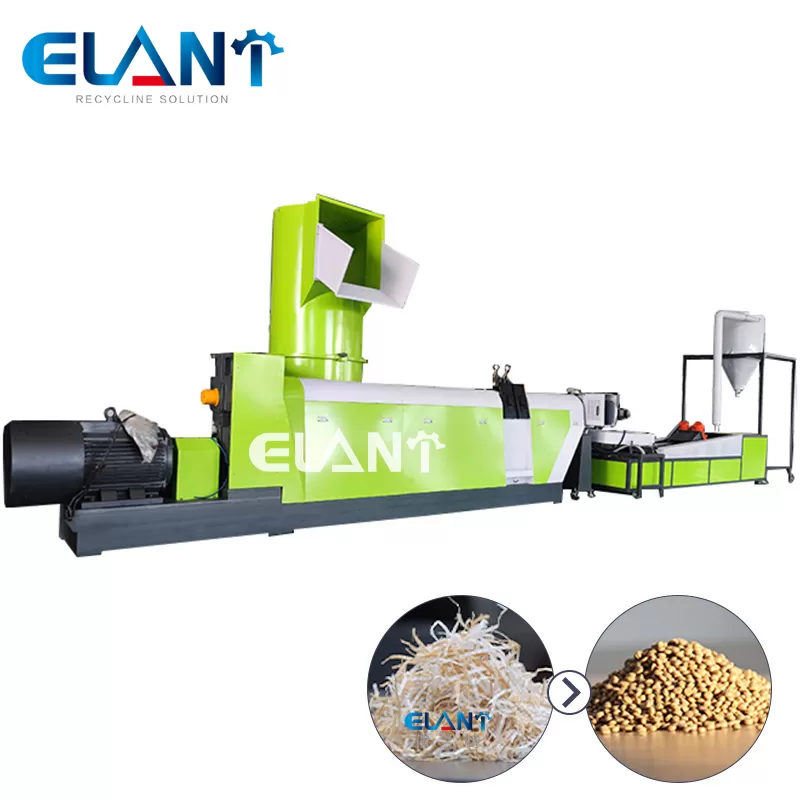

ECS85 Compactor Plastic Film Pelletizing Machine

The ECS85 Compactor Plastic Film Pelletizing Machine is a compact, integrated system designed for recycling clean PP, PE, and LDPE films—such as shopping bags, shrink wrap, and agricultural film. It combines a cutter compactor and single-screw extruder to directly convert lightweight film into dense, uniform pellets. With low energy consumption, stable output, and minimal pre-processing requirements, the ECS85 is ideal for small to medium recyclers seeking an efficient, space-saving solution for soft plastic waste.

Complete Process Flow & Equipment Configuration

Disassembly of the entire production process and detailed description of each functional module

Film Extrusion Pelletizing Line Sub-module Specifications

Sub-module Name	Composition	Function
Film Crushing Module	Special anti-winding film crusher, discharge conveyor, metal detector	Crushes large PP/PE/LDPE film pieces into 3–5 cm fragments for easier melting; detects and removes metal to protect downstream equipment.
Cleaning & Dewatering Module	Bubble cleaning tank, high-pressure spray, centrifugal dehydrator	Removes dirt, oil, ink, and other surface contaminants; dewatering reduces moisture to ≤1% to prevent bubbling during extrusion.
Feeding Module	Speed-adjustable screw feeder, hopper, level sensor	Ensures uniform, continuous feeding of dehydrated flakes; adjusts feed rate based on extruder demand to avoid surging or starvation.
Melting & Extrusion Module	Single/twin-screw extruder, multi-zone heater, temperature controller	Uniformly melts film flakes; temperature tailored by material (PP: 170–220°C, PE: 160–210°C, LDPE: 150–200°C); extrudes molten plastic as strand.
Filtering & Impurity Removing Module	Coarse/fine filters, magnetic separator, backwashing device	Removes residual contaminants; magnetic separator captures metal; backwashing enables online filter cleaning without stopping production.
Shaping & Cooling Module	Shaping die, water cooling tank, air cooler, conveyor belt	Forms molten strand to fixed diameter and rapidly cools it for dimensional stability and hardness.

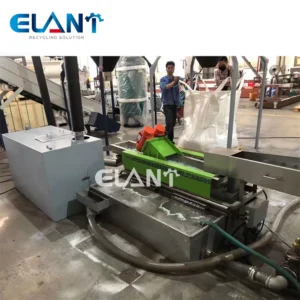

Pelletizing Module	High-speed cutter, gap adjustment device, particle separator	Cuts cooled strand into uniform 2–6 mm pellets; adjustable gap controls size; separates pellets from fines.
Drying & Screening Module	Hot air dryer, vibrating screen, cyclone separator	Dries pellets to ≤0.3% moisture; screens out oversized/undersized particles; removes dust for consistent product quality.
Control & Electrical Module	PLC cabinet, touchscreen, sensors (temperature, pressure, current, level)	Enables full automation, real-time monitoring, automatic fault alarm/shutdown, and production data logging for traceability.

Technical Parameters

Quantitative presentation of key technical indicators of the equipment

Film Extrusion Pelletizing Line Technical Indicators

Technical Indicator	Specific Content	Description
Processing Capacity	20-2000kg/h	Varies by model (single-screw: 100-800kg/h; twin-screw: 300-2000kg/h); can be customized according to project needs.
Applicable Materials	PP/PE/LDPE plastic film waste, mixed film scraps, film leftovers, agricultural films, etc.	Suitable for various PP/PE/LDPE film materials; twin-screw models can handle mixed materials and materials with high impurity content.
Pellet Diameter	2-6mm	Customizable according to downstream processing requirements; size error ≤±0.1mm.
Pellet Moisture Content	≤0.3%	Ensure the pellets can be directly stored and reused for production without secondary drying.
Screw Diameter	30-150mm	Corresponds to the processing capacity; the larger the diameter, the higher the processing efficiency.
Heating Temperature	150-220℃	Multi-zone adjustable; precise control according to material type (PP: 170-220℃; PE: 160-210℃; LDPE: 150-200℃); temperature error ≤±2℃.
Power Consumption	5-60kW	Varies by processing capacity and model; energy-saving models can reduce energy consumption by 15-25%.
Overall Dimensions	Customized	Typical size range: 4m×1.5m×2.2m - 15m×3.5m×4.5m; can be optimized according to the workshop space.
Installation Requirement	Indoor workshop, flat concrete foundation, 380V/220V voltage, water supply and drainage system	Voltage can be customized according to the requirements of different countries/regions; the integrated model needs to be equipped with a sewage treatment device.
Certifications	CE, ISO 9001, SGS	Complies with mainstream global market access standards, ensuring cross-border sales and use.

Value Advantages for Customers

High Economic Benefits

Strong Adaptability

Reliable Quality & Stable Operation

key components (screw, cutter, bearing, motor) are made of high-quality alloy materials and well-known brand products
undergo 72-hour continuous operation testing before delivery
service life of the whole machine reaches 8-12 years
equipped with a complete spare parts supply system to ensure long-term stable operation

Comprehensive After-Sales Support

Provides one-stop services including pre-sales program design, in-sales production progress tracking, and post-sales on-site installation, commissioning, and operator training
1-year warranty for core components
24-hour online technical support
lifelong supply of spare parts at factory prices
provides logistics and customs clearance one-stop services for overseas customers

Frequently Asked Questions

What is the delivery time and payment terms?

Yes. The integrated model is equipped with an enhanced cleaning module (bubble cleaning + high-pressure spray), which can effectively remove soil and oil stains on the film surface; the subsequent centrifugal dehydrator can dehydrate the film to moisture content ≤1%, ensuring the melting effect. For severely polluted materials, an additional chemical cleaning module can be customized.

Can PP, PE and LDPE film materials be processed at the same time?

Yes. The twin-screw model is specially designed for mixed materials; it has strong mixing and melting capacity, which can uniformly mix and melt PP, PE and LDPE film materials. It is recommended to pre-classify the materials if high-purity single-material pellets are required, and the single-screw model can be used for separate processing.

What is the daily maintenance requirement of the equipment?

Daily maintenance mainly includes: 1) Clean the crusher, cleaning tank and filter screen regularly to avoid impurity accumulation; 2) Check the wear of the crusher blade and pelletizing cutter, and replace them in time when the wear is excessive; 3) Lubricate the transmission parts (bearing, gearbox) regularly; 4) Check the heating system and sensors to ensure accurate temperature control and parameter monitoring.

What is the delivery time and payment terms?

The delivery time for standard models is 25-35 days; customized models (such as integrated models with enhanced cleaning functions) take 35-45 days. We support flexible payment terms (T/T, L/C, DP) and accept small-batch trial orders. For bulk orders, we provide preferential pricing and phased delivery services.

Do you provide sample testing services?

Yes. Customers can send their PP/PE/LDPE film waste samples to us; we will process them into finished pellets using the corresponding model equipment and send the samples back for inspection. We also provide test reports (pellet purity, moisture content, particle size) to help customers confirm the equipment performance. The courier cost is borne by the customer.
