Overview of Plastic Pelletizing Machine

Corresponding Content:

Equipment Nature: A professional industrial equipment that processes various plastic materials (recycled plastic flakes, new plastic granules, plastic leftovers) into uniform, high-quality plastic pellets through processes such as melting, extruding, shaping, and cutting
Applicable Materials: Recycled plastic flakes (HDPE, PP, PET, PVC, etc.), new plastic resin, plastic injection molding leftovers, plastic film scraps, etc.
Core Processes: Integration of the entire process from feeding, melting & extruding, filtering & impurity removing, shaping, cooling to pelletizing
Core Value: Realizes the recycling of plastic waste, improves the utilization rate of plastic materials; the produced plastic pellets have stable performance and can be directly used for injection molding, extrusion, blow molding and other downstream processing, helping enterprises reduce raw material costs
Applicable Enterprises: Plastic recycling plants, plastic product manufacturers, chemical enterprises engaged in plastic processing, waste treatment centers

Key Types of Plastic Pelletizing Machine

Core Product Portfolio & Application Scenarios

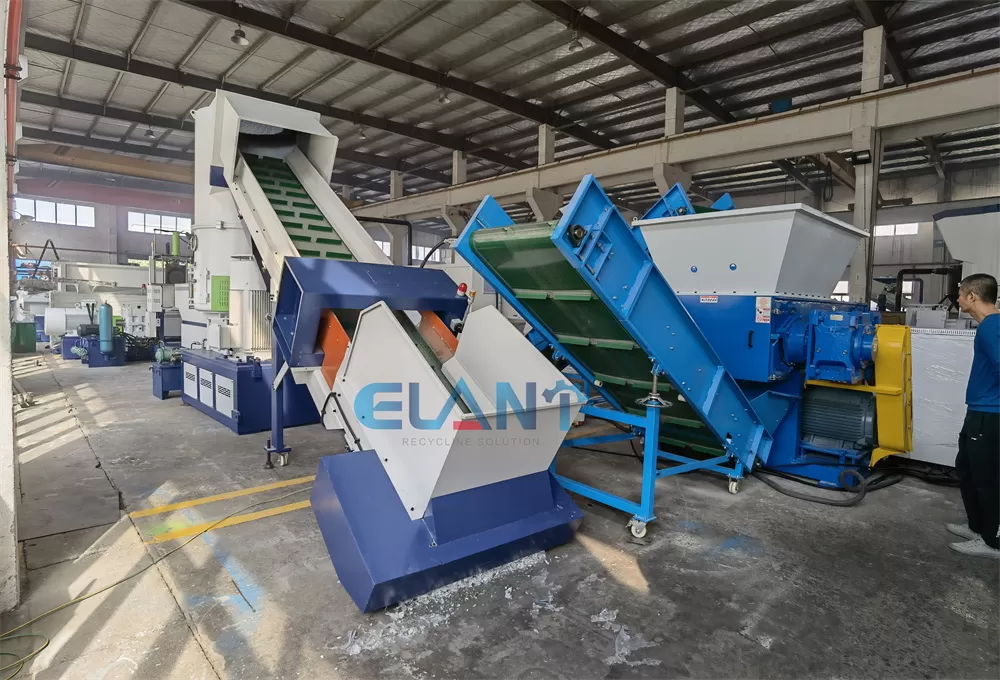

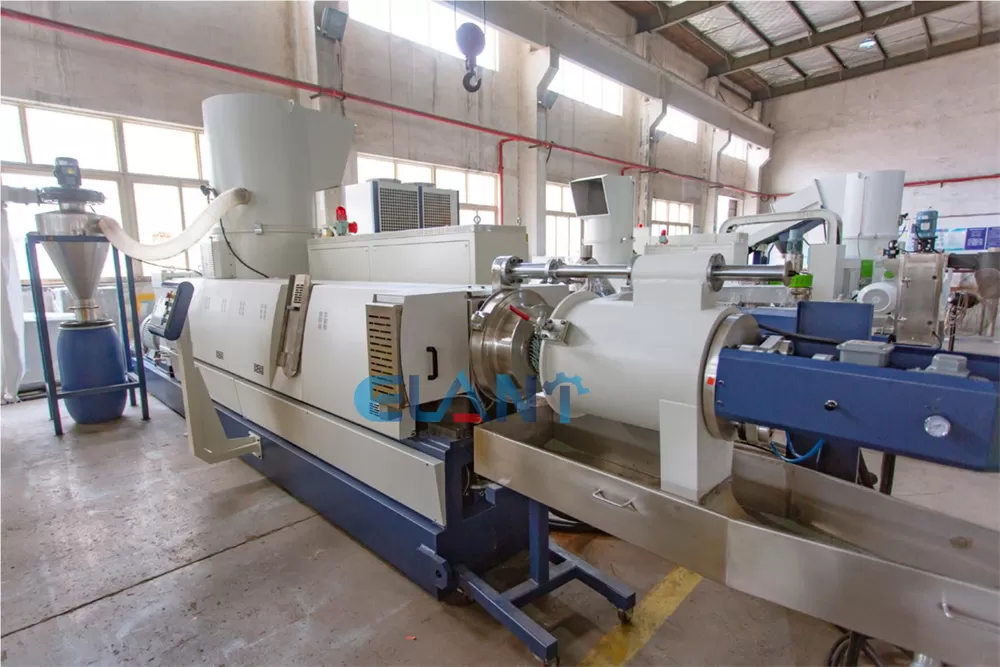

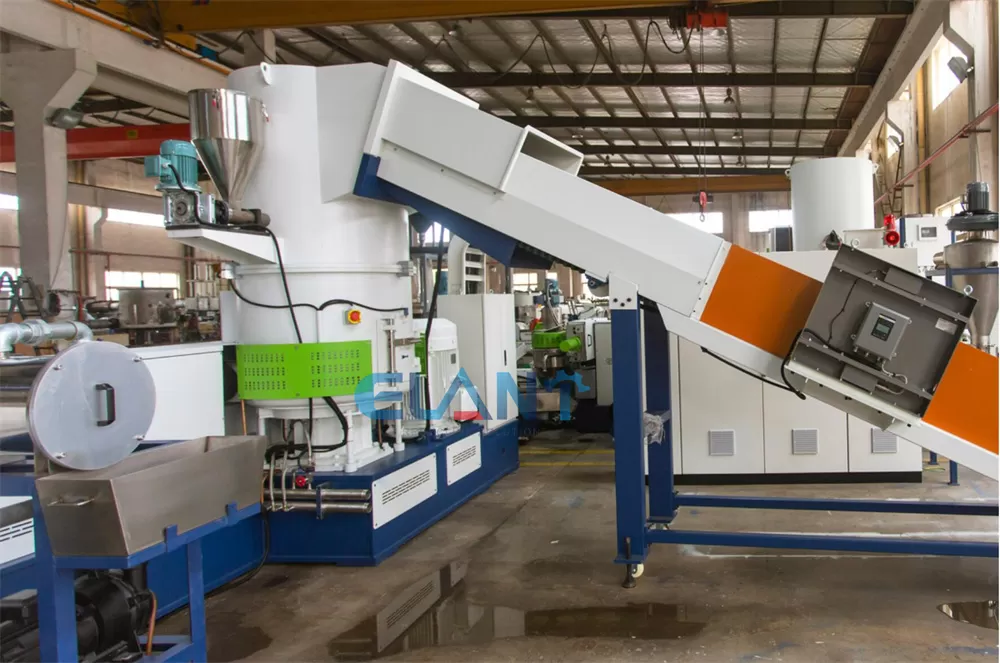

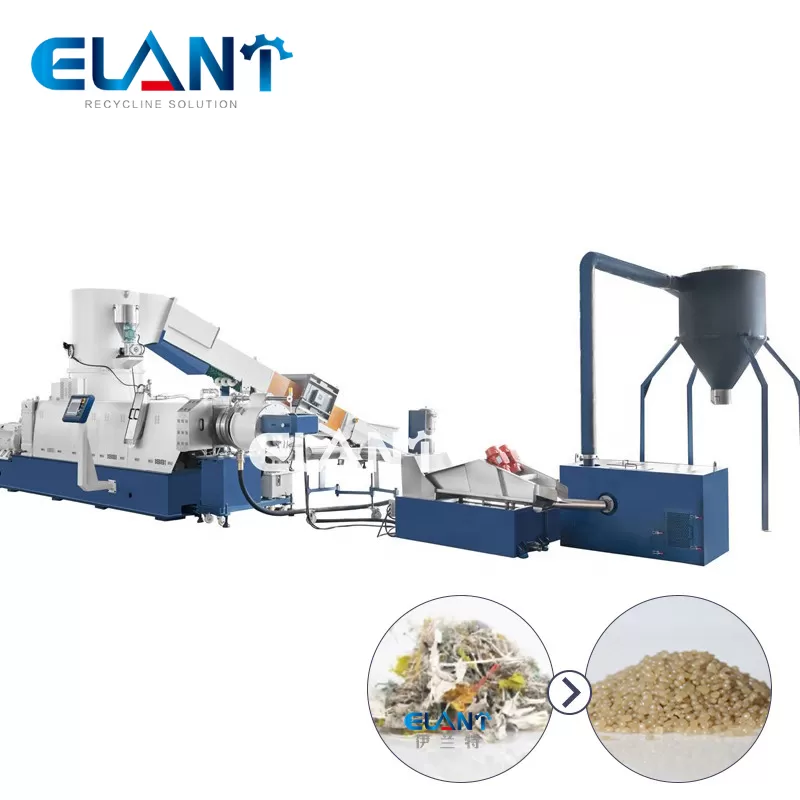

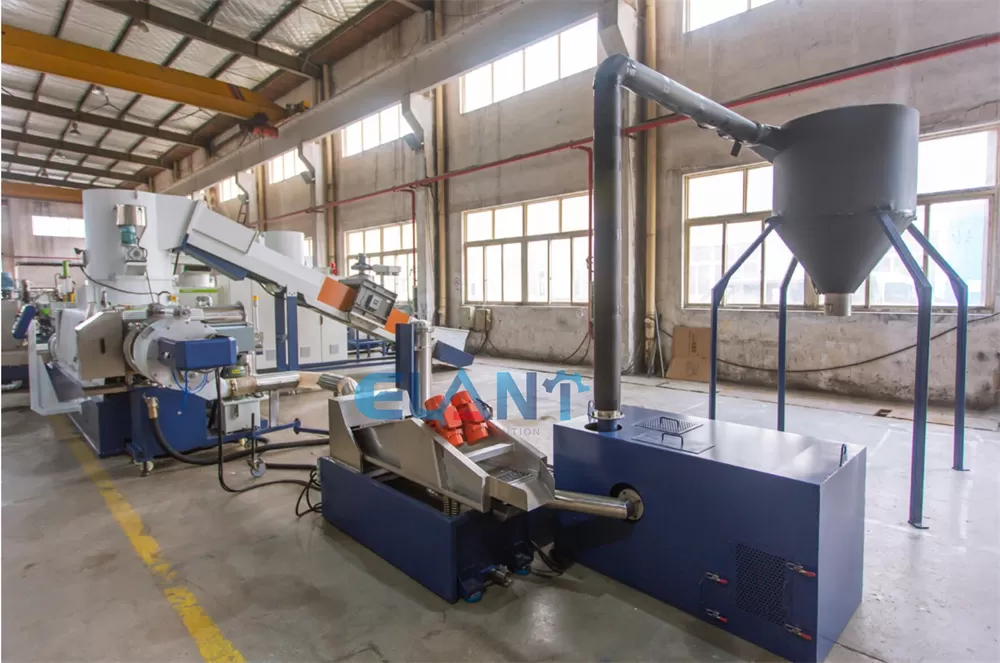

ECS130 PE LDPE HDPE LLDPE Film Pelletizing Machine

The ECS130 PE/LDPE/HDPE/LLDPE film pelletizing machine is a compact, high-efficiency recycling line designed to convert clean post-industrial or post-consumer plastic films into uniform pellets. Featuring a single-screw extruder, hydraulic screen changer, and die-face underwater cutting system, it ensures stable output and excellent pellet quality. Ideal for processing shopping bags, shrink wrap, agricultural film, and packaging scraps, the ECS130 delivers reliable performance with low energy consumption—perfect for small to medium-scale recyclers worldwide.

HDPE Plastic Pelletizing Machine

The HDPE plastic pelletizing machine is designed to convert clean HDPE flakes—sourced from bottles, drums, pipes, or film—into high-quality, uniform pellets. Featuring a robust single-screw extruder, precision die head, and automatic underwater or strand-cutting system, it ensures consistent melt homogeneity and pellet integrity. The resulting pellets are ideal for reuse in injection molding, blow molding, and pipe extrusion. Built with energy-efficient motors and PLC control, the machine offers stable, low-maintenance operation for recycling plants and compounders worldwide.

Underwater Pelletizer Machine for Thermoplastics Elastomer

The underwater pelletizer machine for thermoplastic elastomers (TPE/TPR/TPV) is a high-precision system that cuts molten polymer strands directly underwater into uniform, spherical pellets. Designed for heat-sensitive and sticky materials, it ensures excellent surface finish, minimal dust, and consistent particle size. Integrated with a melt pump and die plate, the system offers stable pressure and high throughput—ideal for producing premium-grade TPE pellets used in automotive, medical, and consumer goods applications.

Complete Process Flow & Equipment Configuration

Disassembly of the entire production process and detailed description of each functional module

Plastic Extrusion Pelletizing Line Sub-module Specifications

Sub-module	Composition	Function
Feeding Module	Hopper, screw feeder, level sensor	Ensures steady, uniform feeding for stable extrusion.
Melting & Extrusion Module	Screw extruder, heater, temperature controller	Melts plastic evenly and extrudes it through a die.
Filtering Module	Coarse & fine filters, backwash system	Removes metal, sand, and carbonized impurities from melt.
Shaping & Cooling Module	Die, water/air cooler, conveyor	Shapes melt and cools it quickly for dimensional stability.

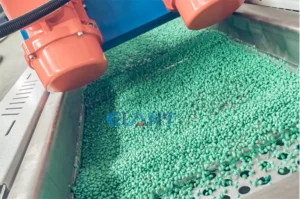

Pelletizing Module	High-speed cutter, adjuster, separator	Cuts cooled strand into uniform pellets; removes fines.
Drying & Screening Module	Hot-air dryer, vibrating screen, cyclone	Dries pellets (≤0.3% moisture) and screens out off-size particles.
Control & Electrical Module	PLC cabinet, touchscreen, temp/pressure/level sensors	Automates operation, monitors parameters, and triggers safety shutdowns.

Technical Parameters

Quantitative presentation of key technical indicators of the equipment

Plastic Extrusion Pelletizing Line Technical Indicators

Technical Indicator	Specific Content	Description
Processing Capacity	20–2000 kg/h	Varies by model; fully customizable to project needs.
Applicable Materials	HDPE, PP, PE, PET, PVC, recycled flakes, scraps	Single-screw for single materials; twin-screw supports mixed plastics.
Pellet Diameter	2–6 mm	Adjustable per downstream processing requirements.
Pellet Moisture Content	≤0.3%	Suitable for direct storage and immediate reuse.
Screw Diameter	30–150 mm	Larger diameter = higher output; matched to capacity.
Heating Temperature	80–300°C	Precise control (±2°C); adjustable for different polymers.
Power Consumption	5–60 kW	Depends on model and output; energy-efficient options available.
Overall Dimensions	Customized	Typical range: 3×1.2×2 m to 12×3×4 m; space-optimized layouts available.
Installation Requirement	Indoor workshop, level concrete floor, 220V/380V	Voltage configurable for regional standards (e.g., EU, US, ASEAN).
Certifications	CE, ISO 9001, SGS	Meets global market compliance for safe export and operation.

Value Advantages for Customers

High Economic Benefits

Strong Adaptability

Reliable Quality & Stable Operation

Comprehensive After-Sales Support

Frequently Asked Questions

Can the machine process mixed plastic materials?

Yes. Twin-screw plastic pelletizing machine is specially designed for mixed plastic materials; it can uniformly mix and melt different types of plastics. For materials with large differences in properties, a pre-mixing module can be added to ensure pellet quality.

What is the daily maintenance requirement?

Daily maintenance mainly includes: 1) Clean the feeding hopper and filter screen regularly to avoid impurity accumulation; 2) Check the wear of the screw and cutter, and replace them in time if there is excessive wear; 3) Lubricate the transmission parts (bearing, gearbox) regularly; 4) Check the heating system and temperature sensor to ensure accurate temperature control.

Is it necessary to dry the plastic materials before feeding?

Yes. It is recommended to dry the plastic materials (especially recycled plastic flakes) to a moisture content of ≤1% before feeding. Excessive moisture will cause bubbles in the pellets, affecting product quality. We can configure a pre-drying module according to customer needs.

What is the delivery time and payment terms?

The delivery time for standard models is 20-30 days; customized models take 35-45 days. We support flexible payment terms (T/T, L/C, DP) and accept small-batch trial orders. For bulk orders, we provide preferential pricing and phased delivery services.

Do you provide sample testing services?

Yes. Customers can send their plastic material samples to us, and we will use our pelletizing machine to process them into finished pellets and send the samples back for inspection. We also provide test reports (pellet size, moisture content, purity) to help customers confirm the equipment’s performance. The courier cost is borne by the customer.
