Overview of Plastic Crusher Machine

Corresponding Content:
- Equipment Nature: A professional industrial device designed for crushing various plastic materials into small particles (2-10mm) through high-speed impact and shear forces; a key pre-processing equipment in plastic recycling and reprocessing lines, distinguishing from shredders by smaller and more uniform output particle size.
- Applicable Materials: PP/PE/LDPE/HDPE plastic films, sheets, injection molding scraps, blow molding waste, plastic bottle flakes, agricultural film fragments, ABS/PS engineering plastic scraps, etc.
- Core Processes: Material feeding → high-speed impact crushing → screening classification → qualified particle discharge; integrates crushing and screening functions to ensure particle size uniformity.
- Core Value: Reduces plastic materials to small particles suitable for subsequent pelletizing, mixing or direct reuse; improves melting efficiency of downstream pelletizing equipment by 40%; realizes resource recycling of plastic scraps, reducing raw material waste.
- Applicable Enterprises: Plastic product manufacturers (injection molding, blow molding, film blowing), plastic recycling plants, pelletizing production lines, small and medium-sized waste plastic treatment workshops.

Key Types of Plastic Crusher Machine

Core Product Portfolio & Application Scenarios

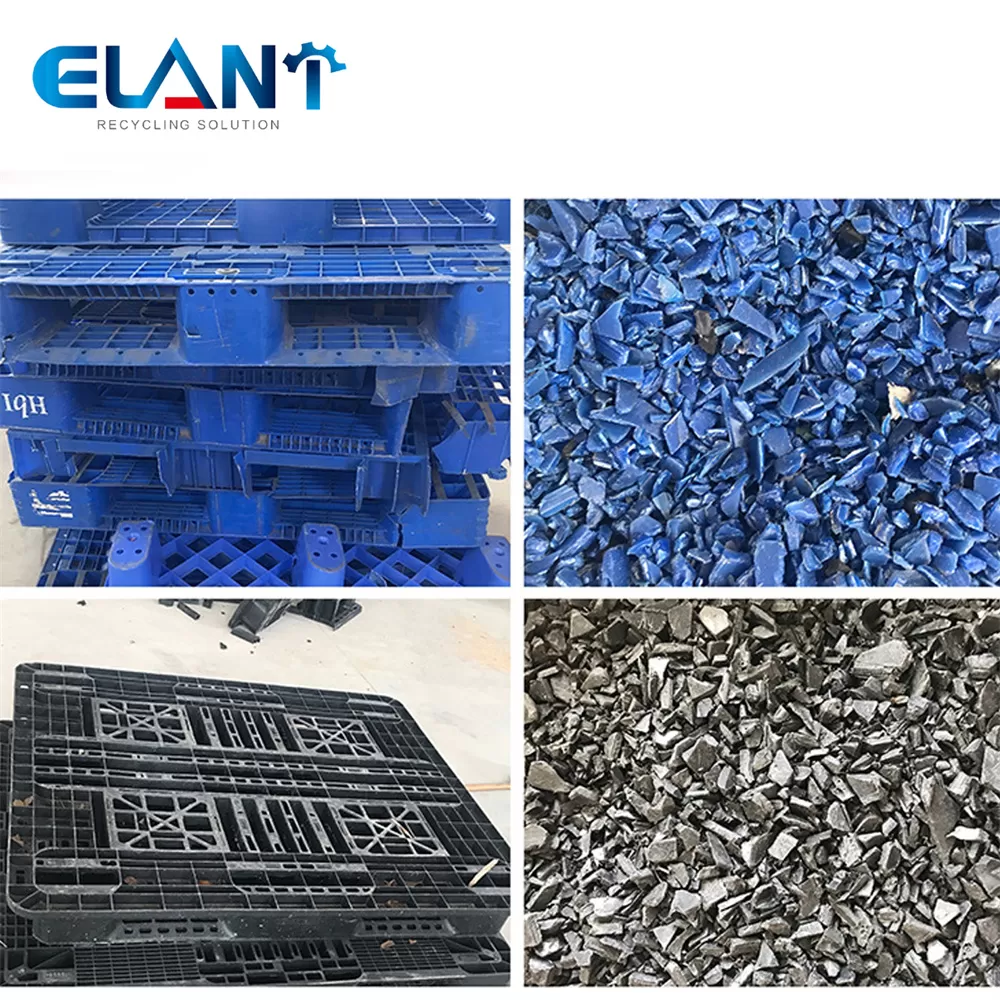

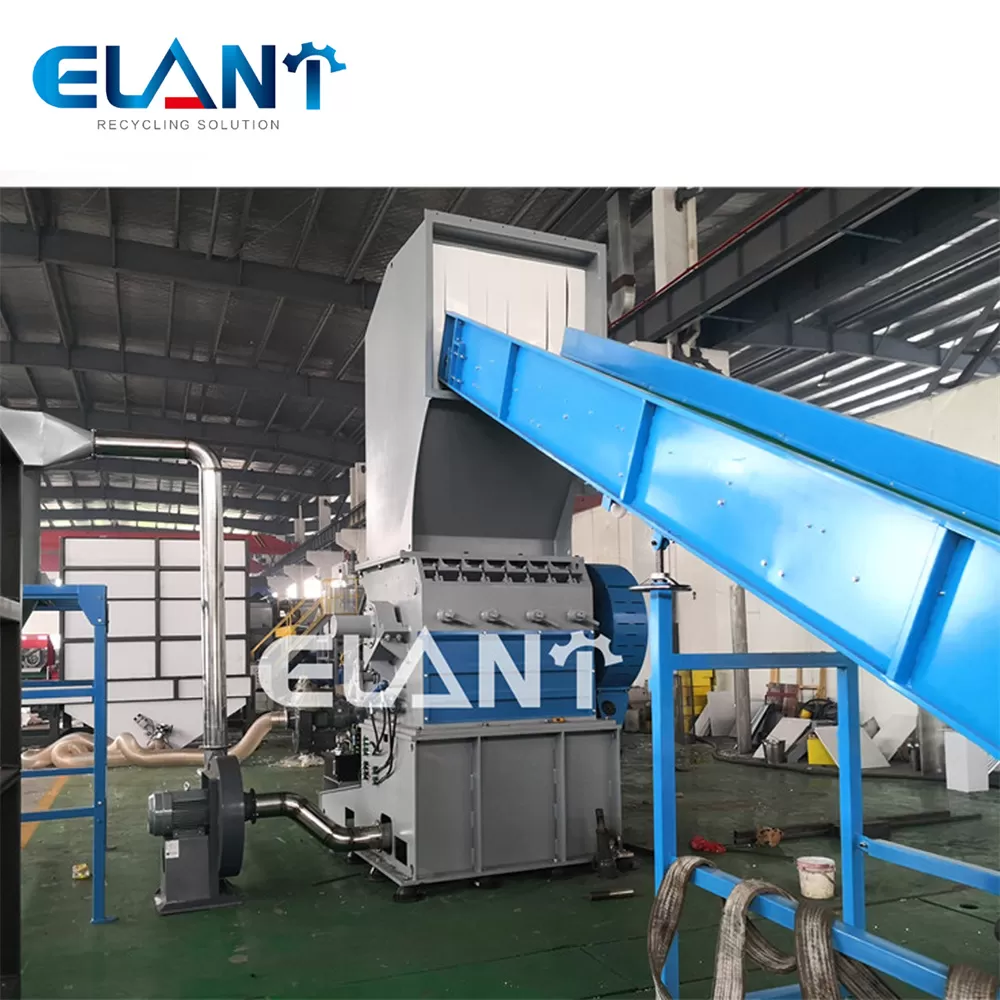

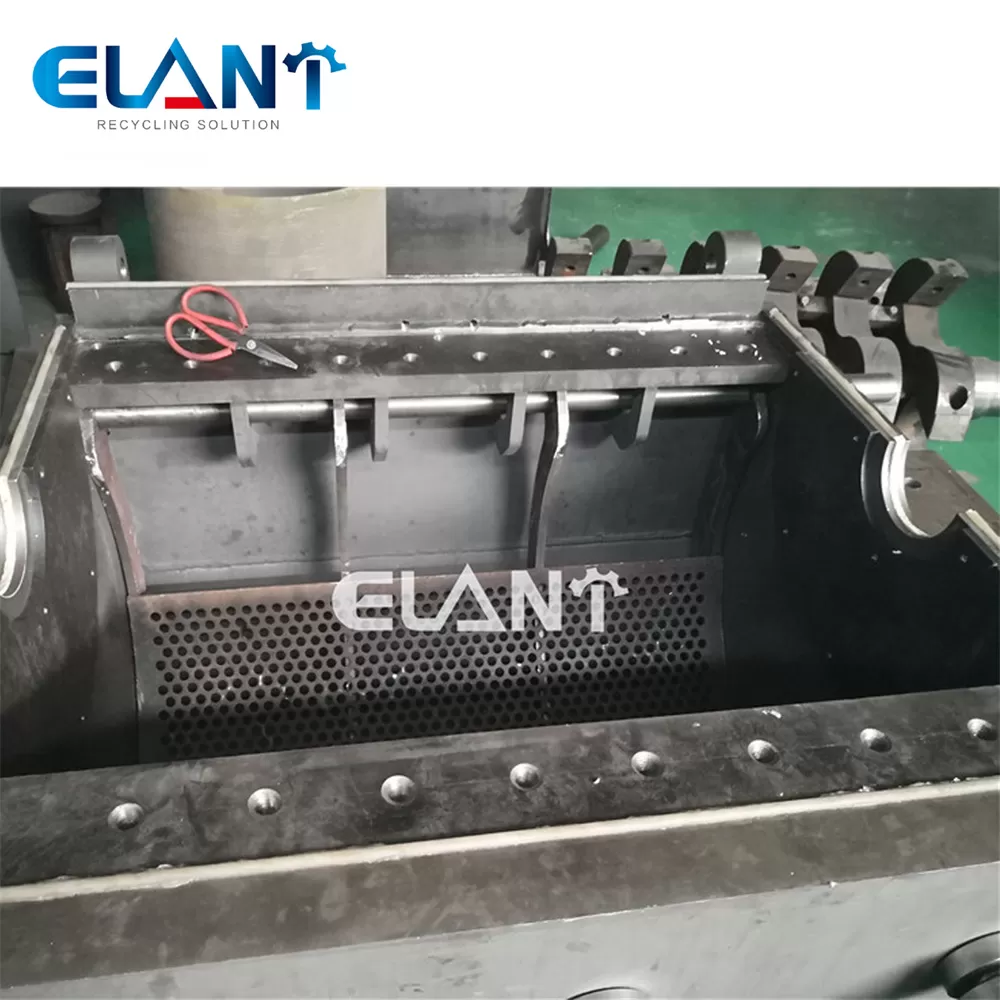

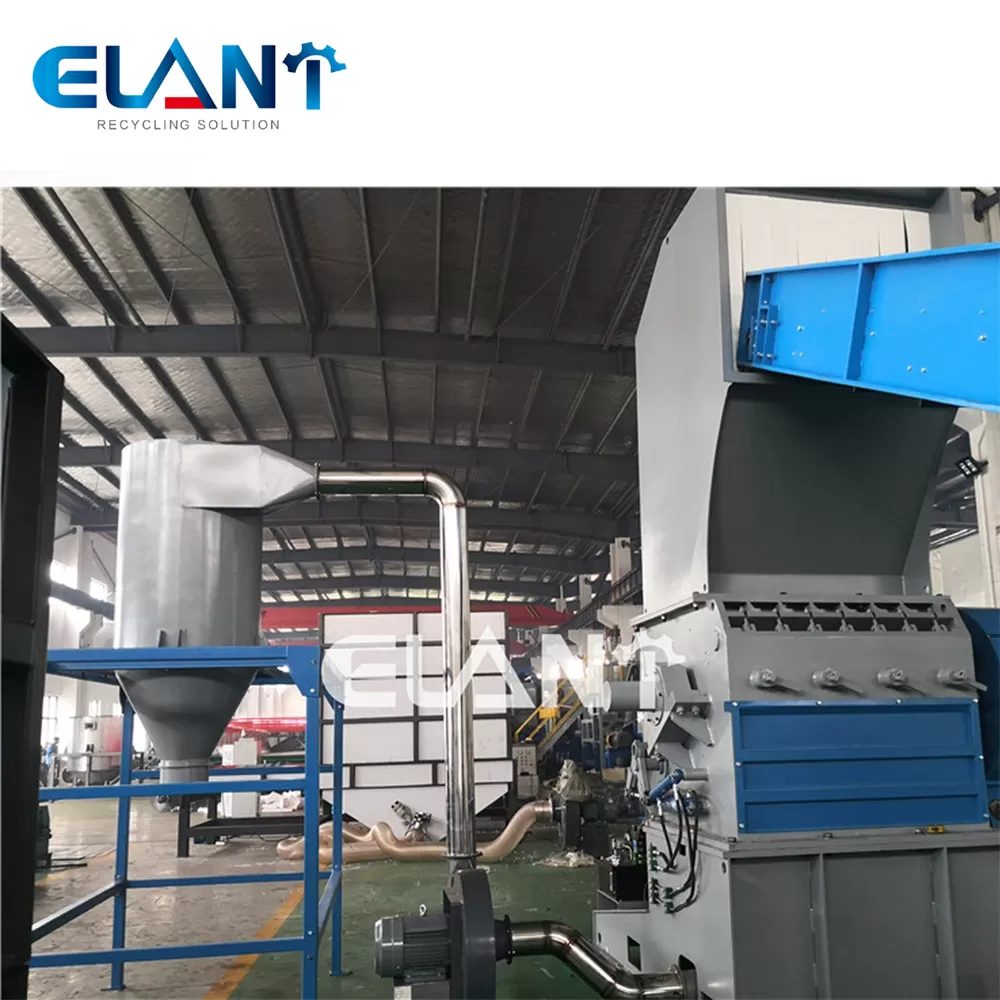

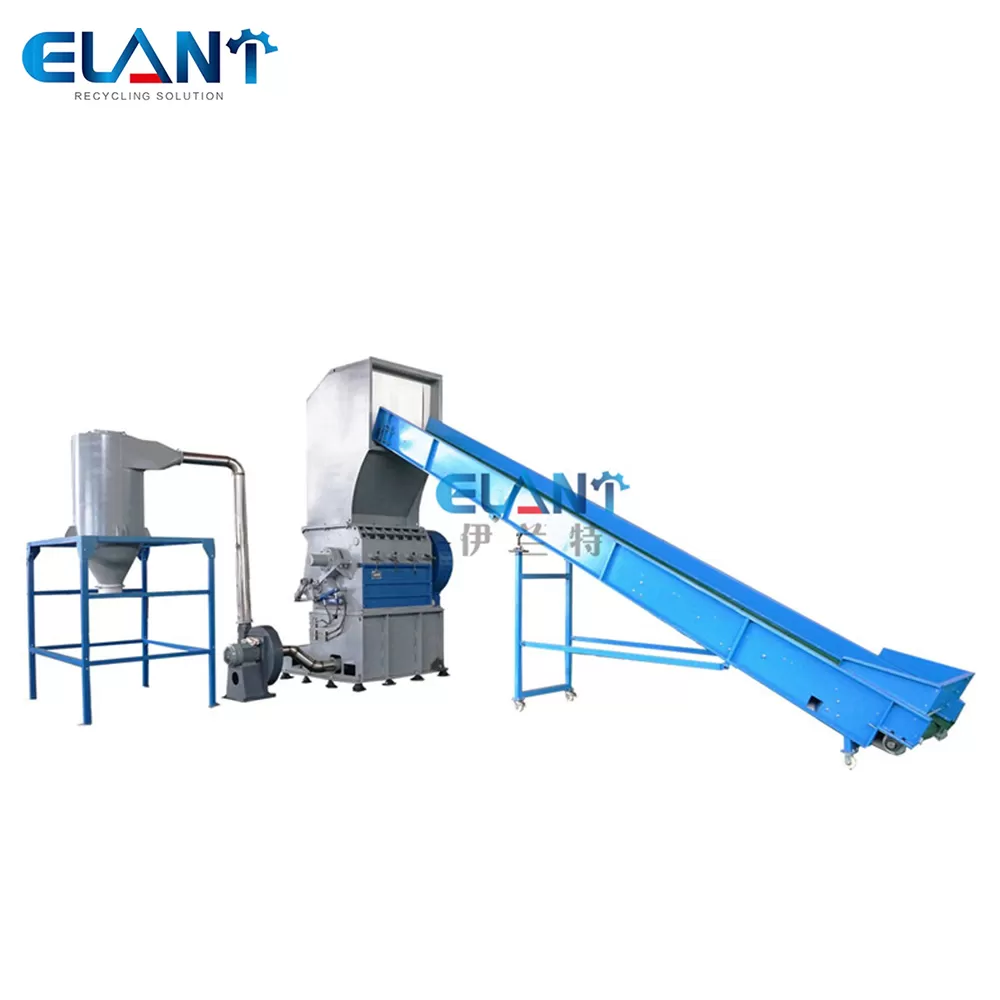

High Quality Plastic Bottle Crusher

The High Quality Plastic Bottle Crusher is engineered to crush PET, PC, and other plastic bottles into uniform flakes with high efficiency and low energy consumption. Featuring heavy-duty alloy blades, a robust frame, and optional automatic feeding, it ensures stable, low-noise operation and minimal maintenance. Ideal for recycling plants, it prepares clean, consistent material for washing lines or pelletizing systems, supporting sustainable plastic waste management.

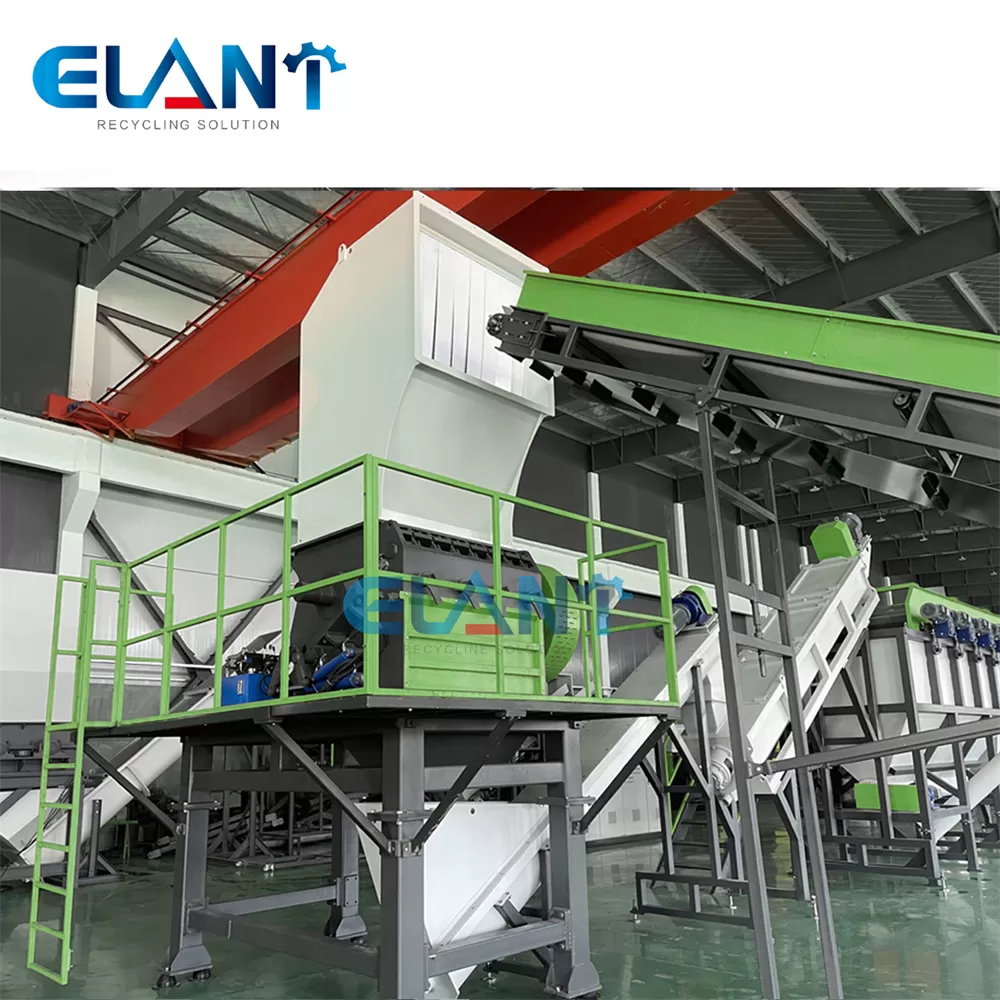

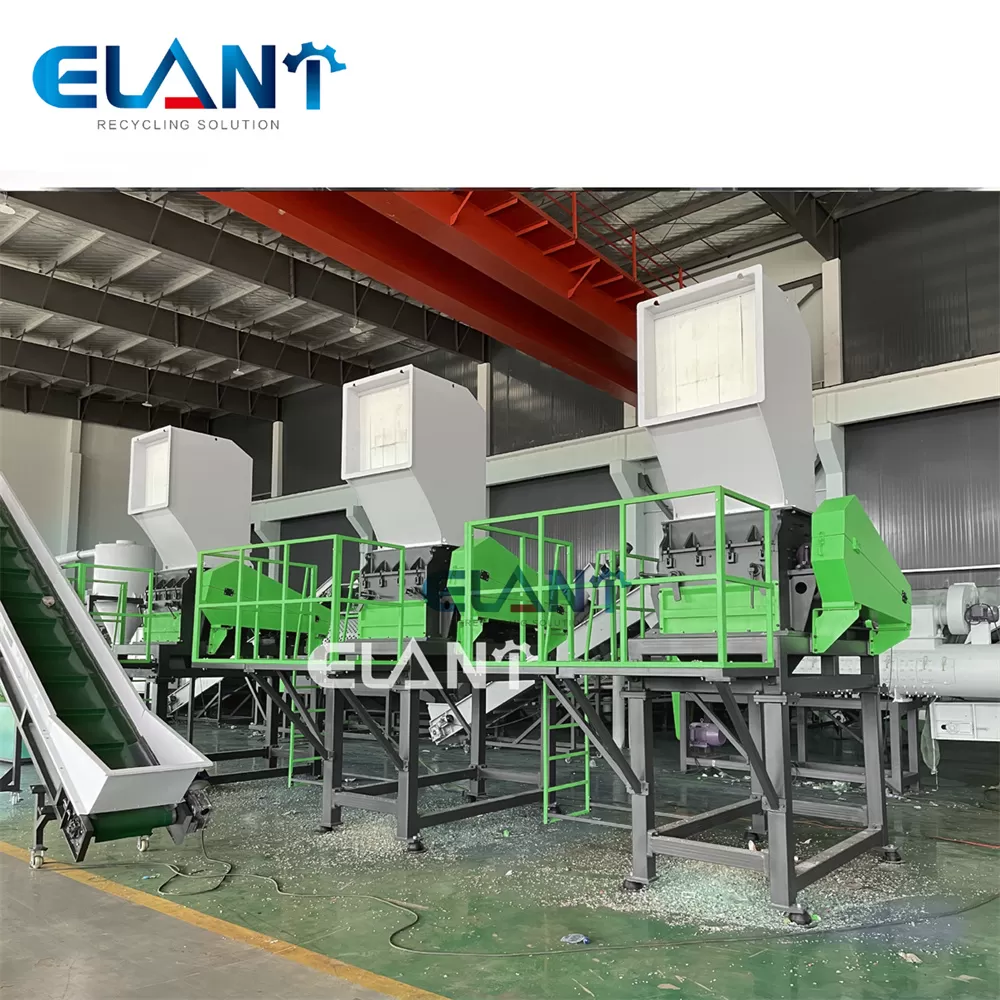

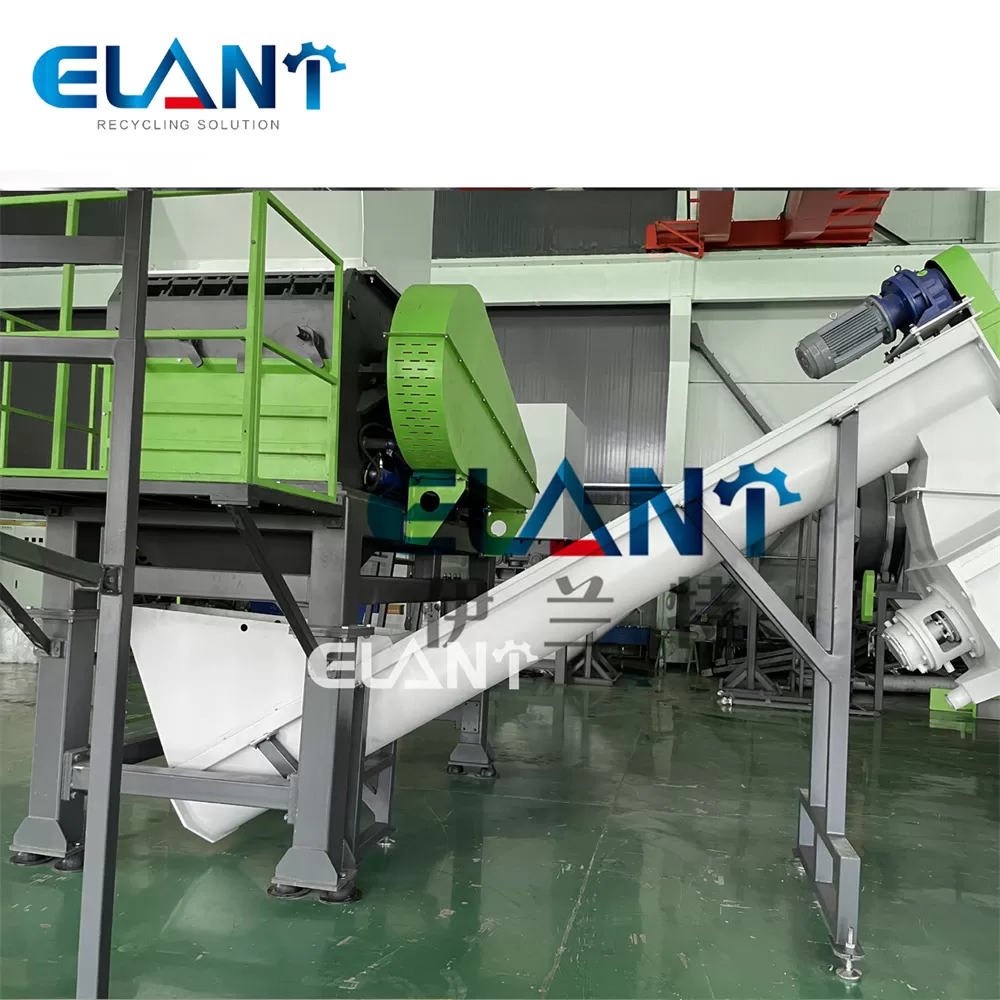

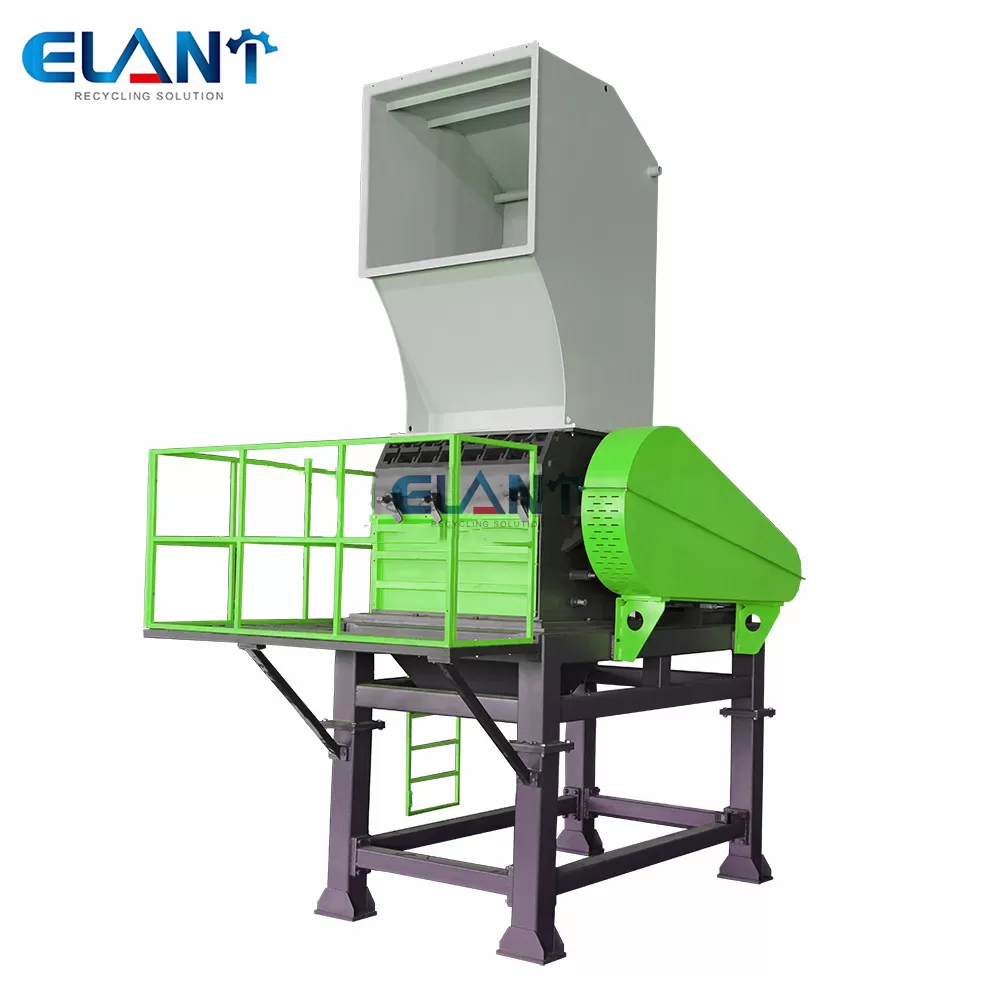

Raffia Bag Crusher Machine

The Raffia Bag Crusher Machine is specially designed to shred and crush polypropylene (PP) raffia or woven bags into small, manageable flakes. Built with high-torque motors and durable cutting blades, it handles tough, fibrous materials without clogging. Ideal for recycling facilities processing agricultural, industrial, or packaging waste, the machine ensures stable operation, low maintenance, and consistent output—perfect as a pre-processing step before washing, drying, or pelletizing in plastic recycling lines.

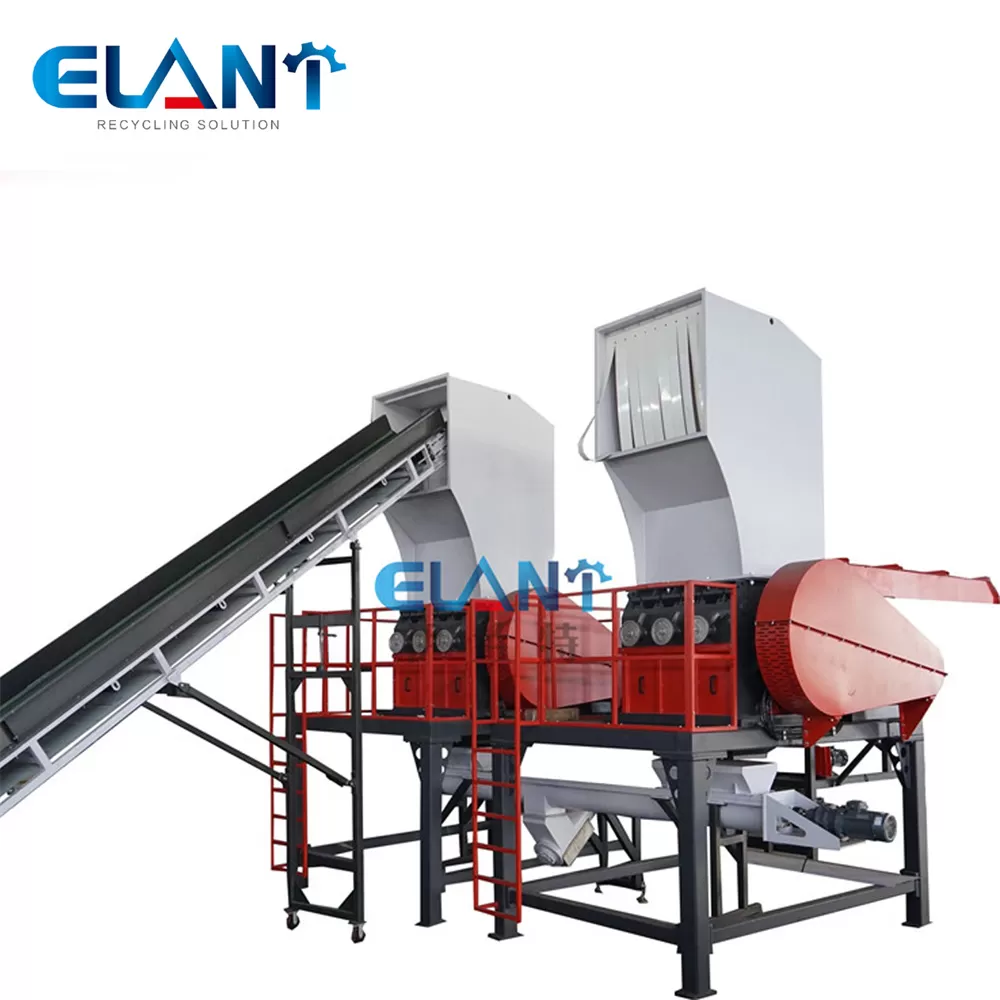

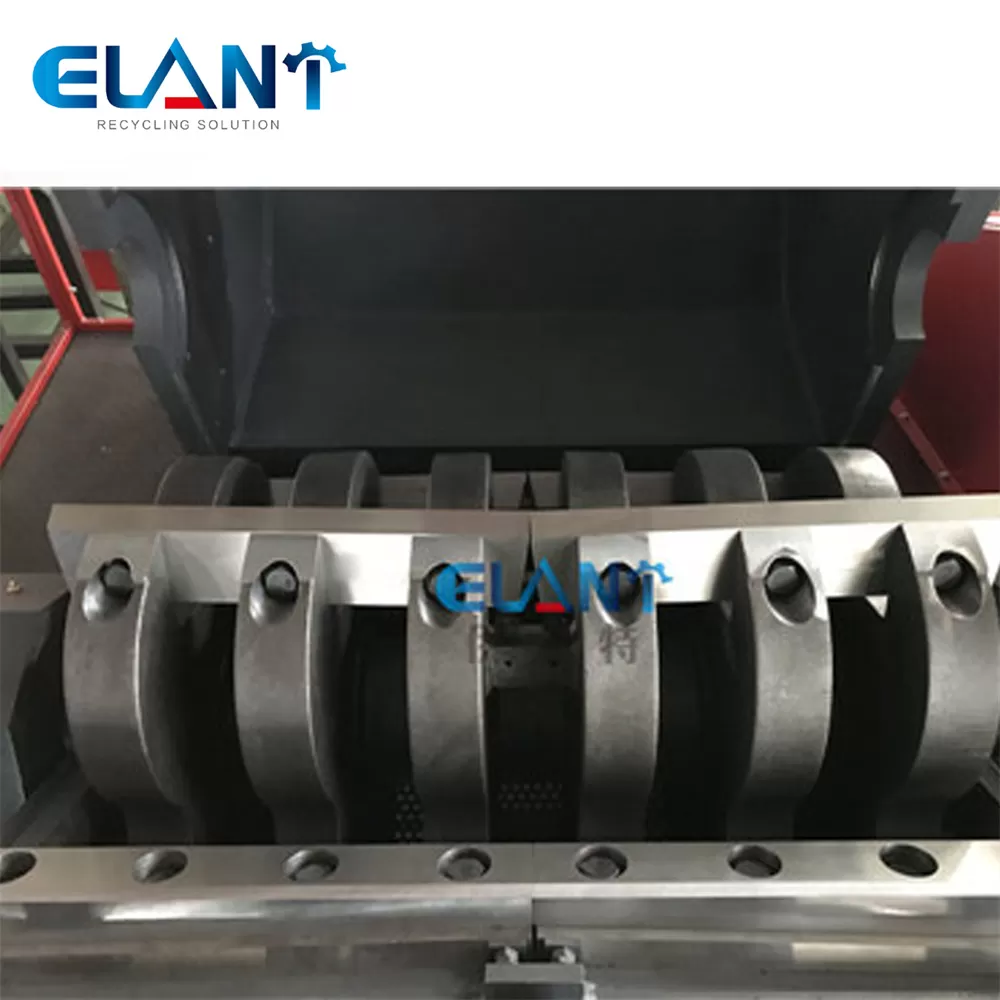

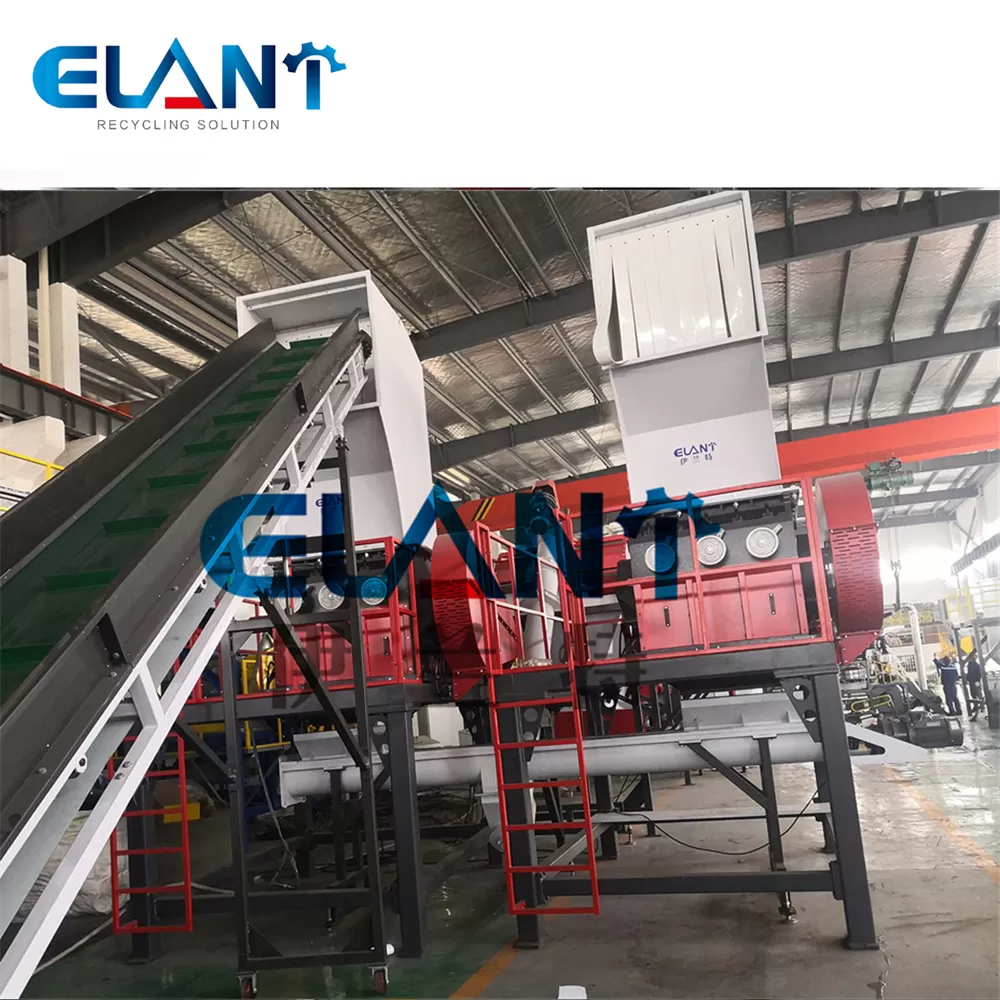

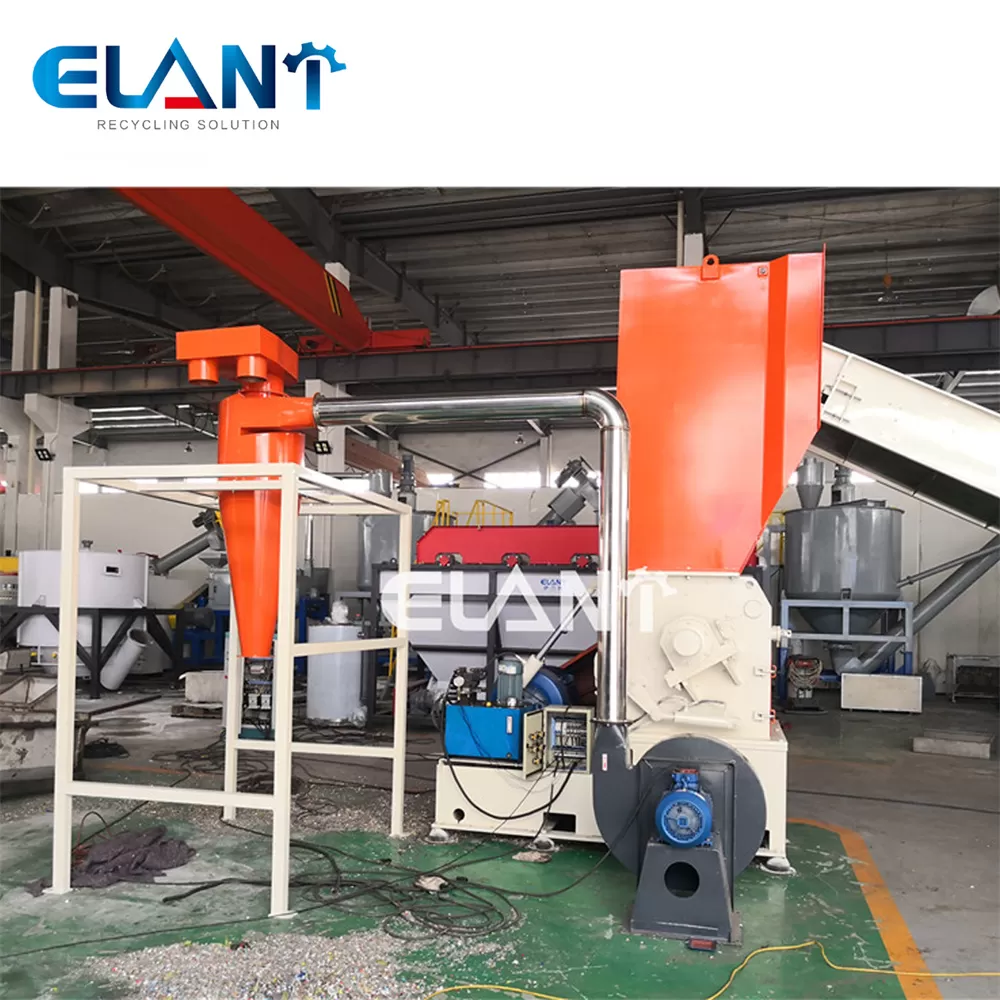

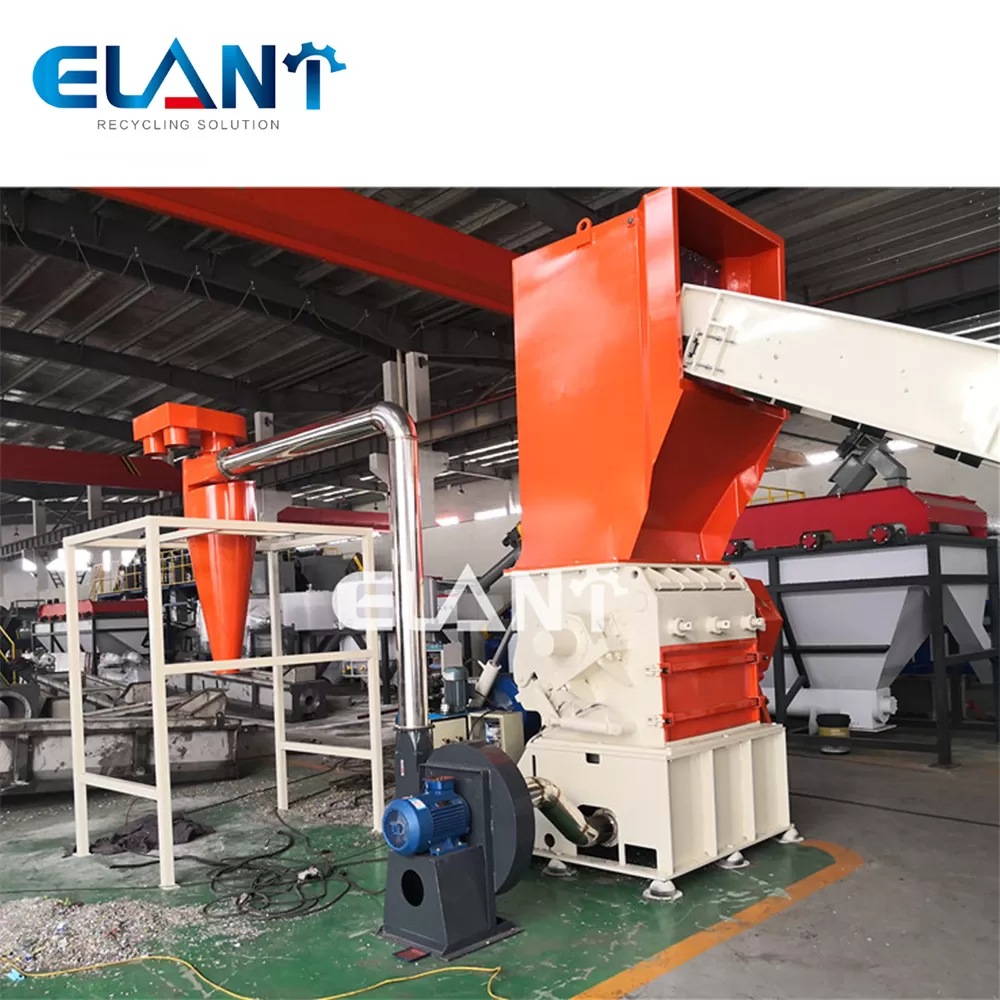

PET Bottle Crushing Machine

The PET Bottle Crushing Machine is a specialized recycling unit designed to efficiently crush post-consumer or industrial PET bottles into uniform flakes. Featuring robust alloy blades, low-dust operation, and optional pre-washing integration, it ensures high throughput with minimal energy use. Ideal for recycling plants, the machine prepares clean, consistent PET flakes suitable for further washing, separation, and pelletizing—supporting circular economy goals by transforming waste bottles into valuable raw material for fibers, sheets, or new packaging.

Complete Process Flow & Equipment Configuration

Disassembly of the entire production process and detailed description of each functional module

Plastic Crushing Line Sub-module Specifications

Sub-module Name	Composition	Function
Feeding Module	Vibrating feeder, anti-blocking hopper, safety door	Uniformly feeds plastic materials into the crushing chamber; prevents material blocking; safety door interlock ensures operation safety.

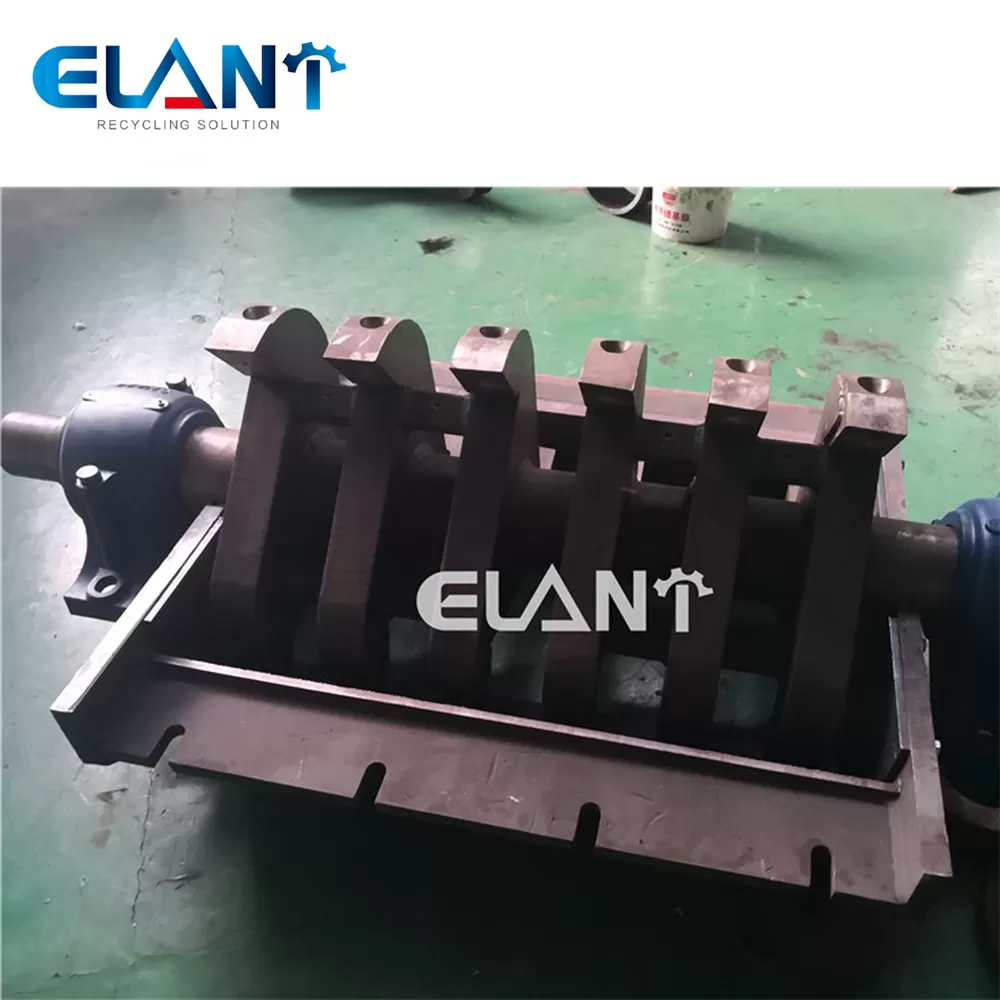

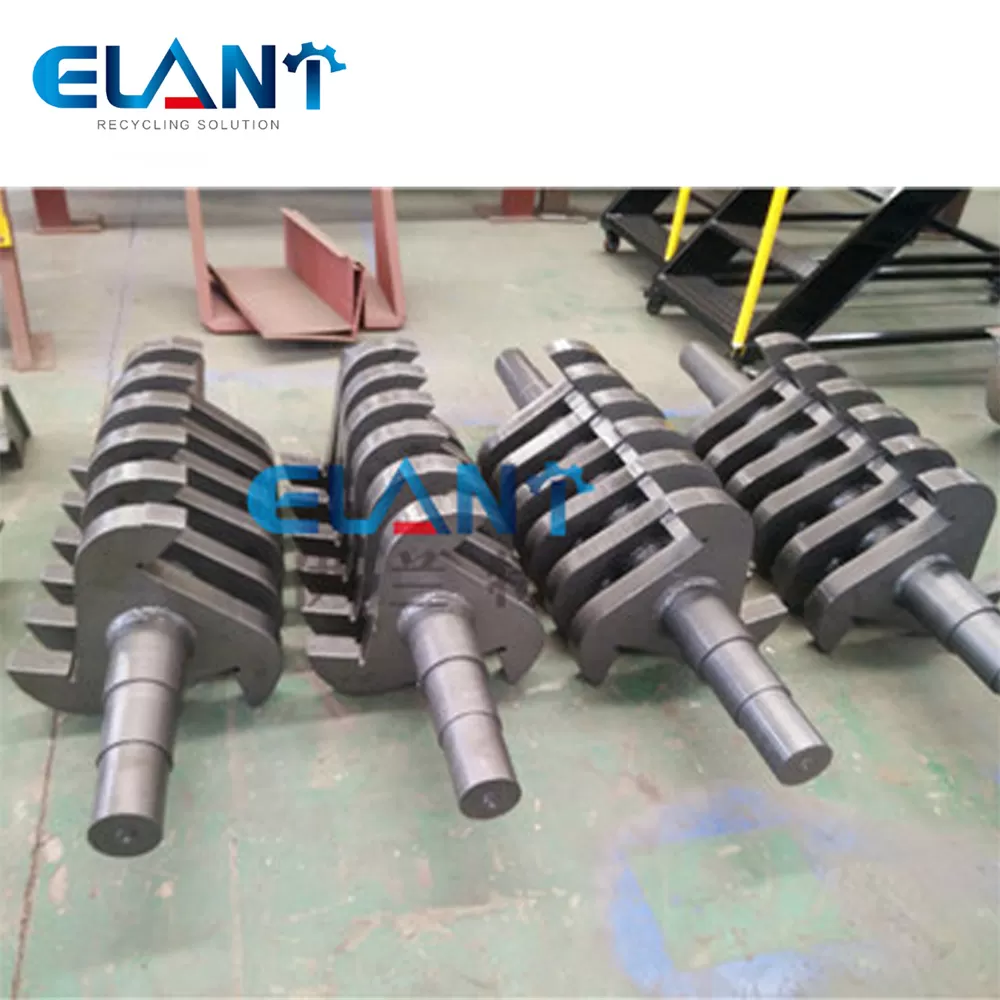

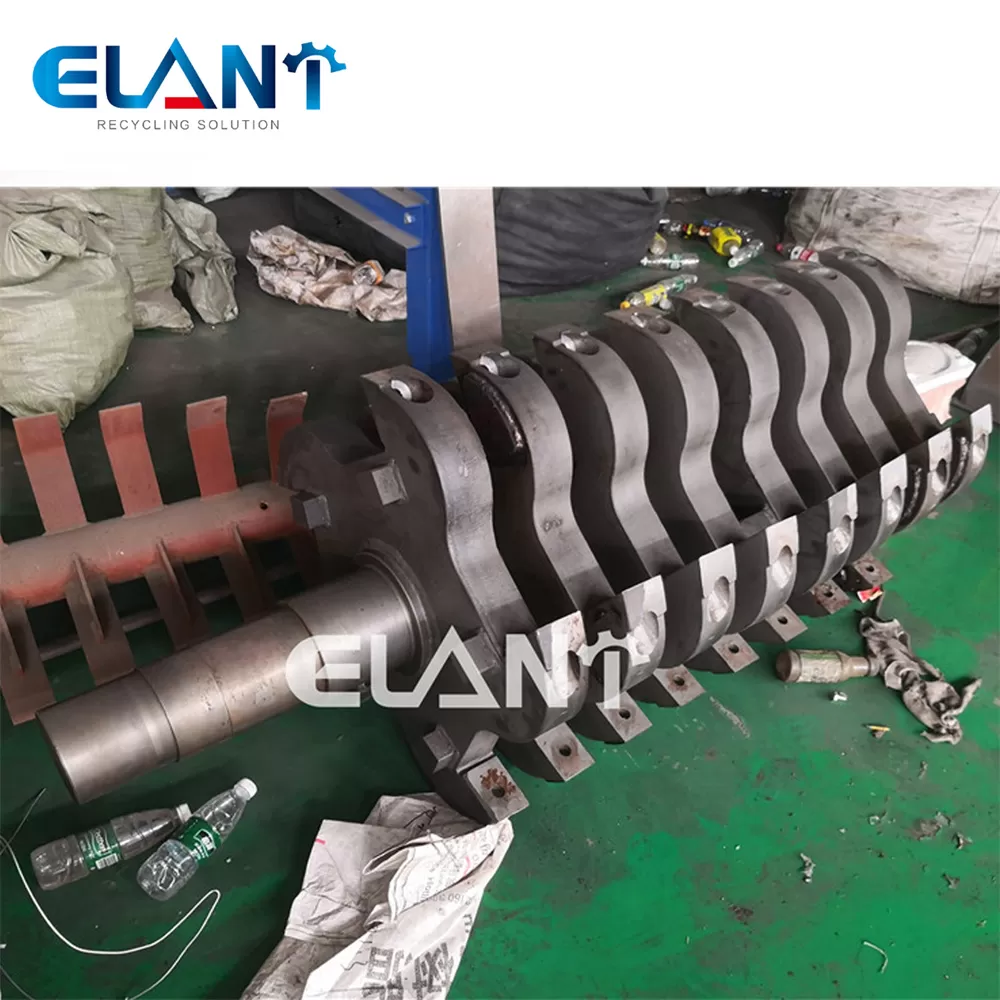

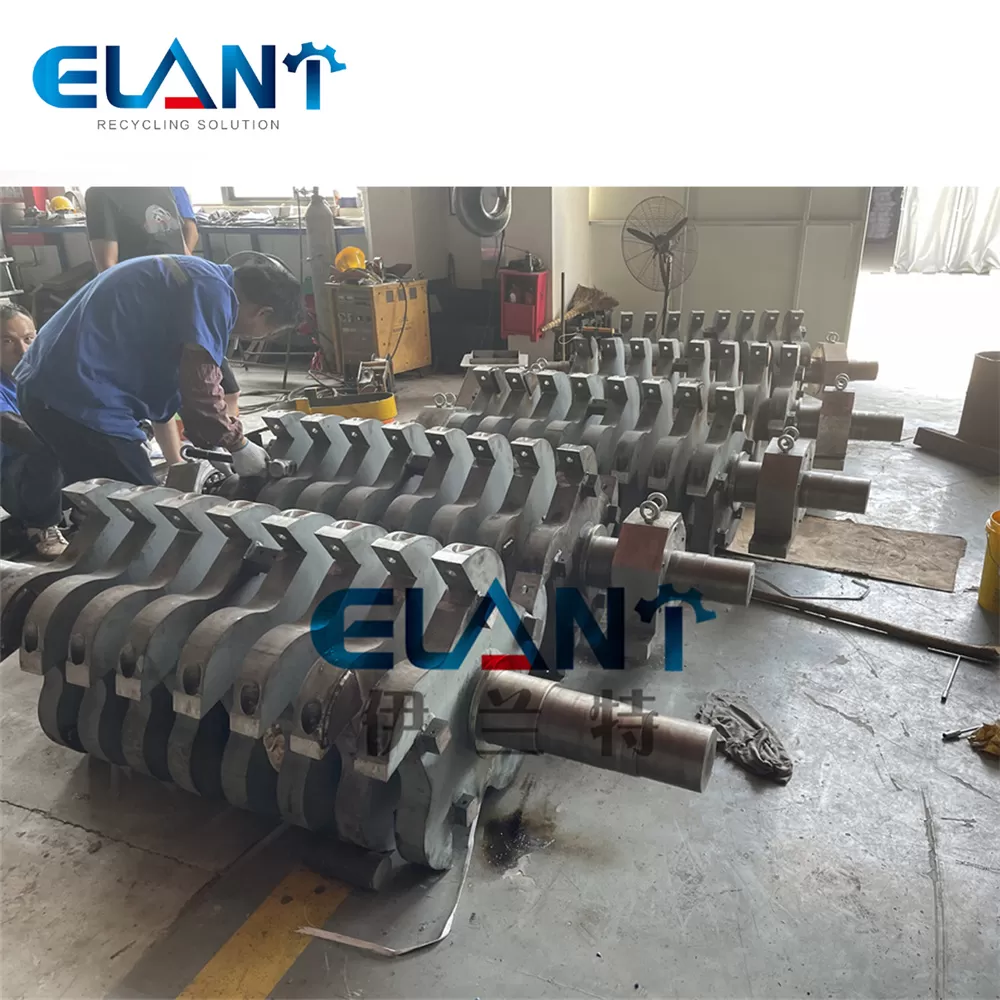

Crushing Module	High-speed motor, crushing rotor, hammer/blade set, fixed knife	Core crushing unit; high-speed rotating hammer/blade generates impact and shear forces to crush plastic materials into small particles.
Screening Module	Vibrating screen, adjustable sieve plate, return conveyor	Screens crushed particles; ensures particle size meets requirements (2-10mm); unqualified large particles are returned to the crushing chamber for re-crushing.
Dust Collection Module	Dust collector, air duct, filter bag	Collects dust generated during crushing; reduces air pollution; ensures clean workshop environment.
Control Module	PLC control cabinet, touch screen, protection sensors	Real-time monitoring of motor speed, temperature and load; automatic alarm and shutdown for faults; easy operation and parameter adjustment.

Technical Parameters

Quantitative presentation of key technical indicators of the equipment

Plastic Fine Crusher Technical Indicators

Technical Indicator	Specification	Description
Processing Capacity	30-1000kg/h	Varies by model (hammer-type: 50-500kg/h; blade-type: 100-1000kg/h); customizable according to project needs.
Output Particle Size	2-10mm	Adjustable via sieve plate replacement; size error ≤±0.5mm.
Motor Power	5.5-75kW	High-efficiency copper wire motor; stable performance; energy-saving.
Rotating Speed	800-1500r/min	Adjustable according to material hardness and required particle size.
Overall Dimensions	1.2×0.8×1.5m - 4.0×2.0×3.0m	Compact structure; can be optimized according to workshop space layout.
Noise Level	≤75dB	Equipped with sound insulation device; low noise pollution (silent model ≤65dB).

Value Advantages for Customers

Improves Subsequent Processing Efficienc

Wide Material Adaptability

Low Operation & Maintenance Costs

Safe & Environmental Protection

Comprehensive After-Sales Support

Frequently Asked Questions

What is the difference between a plastic crusher and a plastic shredder?

Crushers produce smaller and more uniform particles (2-10mm) for direct subsequent processing; shredders produce larger fragments (5-20cm) mainly for volume reduction, requiring further crushing for pelletizing.

Can it crush plastic materials with printing ink or impurities?

Yes; the shear and impact forces can break down ink layers and separate loose impurities; it is recommended to match with a cleaning module for high-impurity materials to improve particle purity.

How often do the blades need to be replaced?

Under normal working conditions, blades need to be sharpened every 2-4 months; service life is 8-12 months depending on the processed material and impurity content.

Is it compatible with existing pelletizing lines?

Yes; the discharge port can be customized to match different types of pelletizing equipment; supports seamless connection and continuous production.

What are the delivery time and payment terms?

Standard models: 10-20 working days; customized models: 20-30 working days; flexible payment terms (T/T, L/C) are supported; small-batch trial orders are acceptable.
